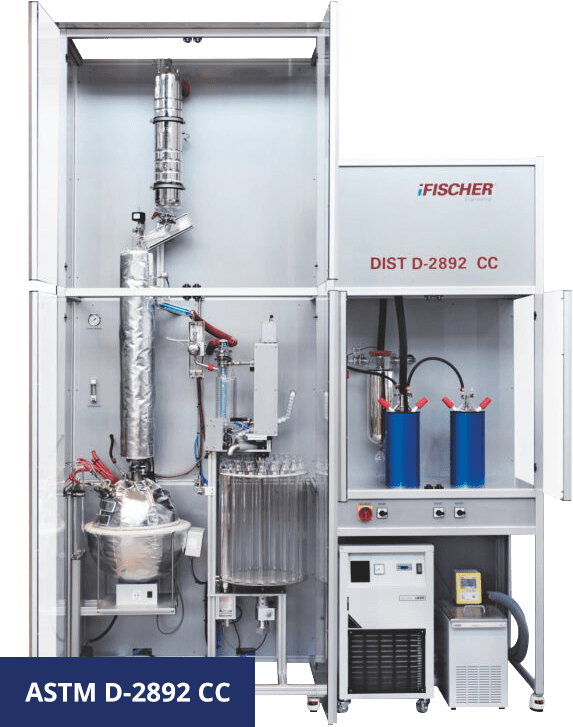

Optimize Your Fractional Distillation with the DIST D-2892 CC

Efficient automated TBP distillation systems fully compliant with ASTM D2892

Why DIST D-2892 CC is the Better Solution

Precision-engineered for full ASTM D2892 compliance.

Class-leading vacuum control affords highly precise fraction cuts.

Improve capture of lightest ends in initial cut for a more complete mass balance

High-efficiency TBP distillation process.

Customizable options and accessories tailored to your labs requirements.

Expert U.S.-based technical support and spare parts.

Outdated or non-automated systems causing headaches?
Upgrade with our modern fully automated system and reduce operator interventions.

Struggling with TBP distillation accuracy?
DIST D-2892 CC provides consistent and high precision results.

High maintenance costs?
Enjoy cost-effective operation with durable components and U.S.-based support and spare parts.

Technical Specifications
Operation Temperature	max. 350 °C in distillation flask
Final Cut Temperature	max. 400 – 420 °C AET (depending on product)
Operation Pressure	1 -760 mmHg (Torr)
Flask Size	20 L (stainless steel)
Charge	6.5 – 13 L
Separation Efficiency	approx. 15 theoretical plates
Fraction Collector	20 x 1,000 mL (included software extension allows up to 40 receivers)
Material	borosilicate glass 3.3, SS 316 L/Ti, PTFE, FPM
Power Supply	230/400 V or 208/480 V, 3P + N + PE, 60 Hz; Others on request
Power Consumption	maximum approx. 22.2 kW (single outlet, not including PC or optional calibration stations)
Operational Environment	+10 – +30 °C
Dimensions (L x D x H)	approx. 2.3 x 0.9 x 3.3 m (incl. circulators, vacuum pump and control cabinet; Options may require an extension of these measurements)
