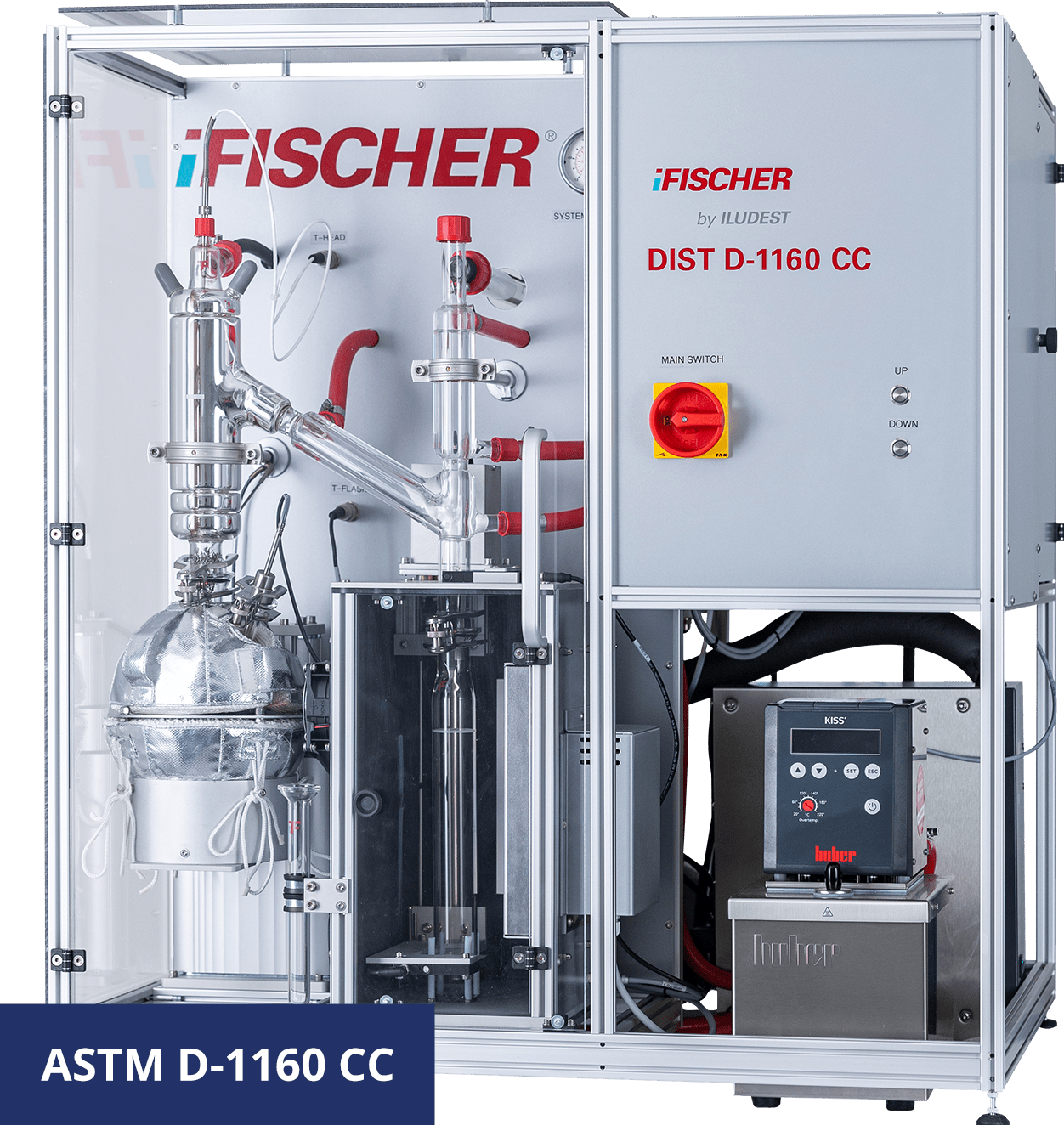

Why Choose DIST D-1160 CC?
Solve Common Lab Challenges with DIST D-1160 CC
Struggling with inaccurate results?
DIST D-1160 CC ensures class-leading precision consistently with every test, which meets or exceeds ASTM D1160 requirements.
Looking to improve labor efficiency in the lab?
Our fully-automated solution frees up operators to perform other critical functions in the lab.
Tired of downtime?
We offer U.S.-based service and support as well as stock of common spare parts.
Built to meet all the requirements of ASTM D1160
| Technical Specifications | |
|---|---|
| Operation Temperature | max. 400 °C in distillation flask |
| Boiling Range | max. 600 °C AET (depending on product) |
| Operation Pressure Range | 0.1 - 760 mmHg (Torr) |
| Pressure Range for Standard Tests | 0.1 - 10 mmHg (Torr) |
| Extended Test Pressure Range | 0.1 - 760 mmHg (Torr) (requires optional second pressure sensor) |
| Flask Size | 500 mL |
| Charge | 200 mL |
| Ambient Temperature | +10 - +30 °C |
| Power Supply | 230 or 208 V, single phase, 60 Hz (others upon request) |
| Power Consumption | maximum approx. 4.1 kW (single outlet, not including PC) |
| Operational Environment | +10 - +30 °C |
| Dimensions (L x D x H) | 85 x 65 x 96 cm |
