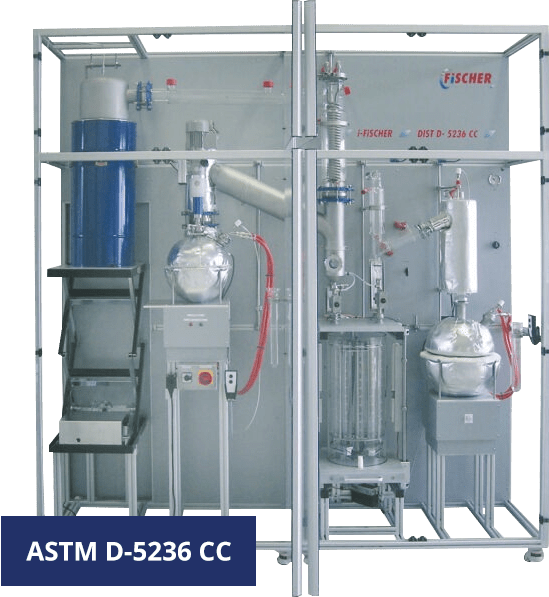

Advanced ASTM D5236 Automated Solutions for Your Lab

Engineered for precision and reliability at ultra-high vacuums

Why DIST D-5236 CC?

Compliant with ASTM D5236 for distillation of heavy residue.

Exceptional reliability in high-demand labs.

Superior high vacuum regulation.

Customizable options and accessories tailored to your labs requirements.

Expert U.S.-based technical support and spare parts.

Struggling with outdated or non-automated systems?
Our DIST D-5236 CC can reduce laboratory manpower.

Struggling to fully comply with ASTM D5236?
Our systems strictly follow the method requirements and precision.

High maintenance costs?
Enjoy cost-effective operation with durable components and U.S.-based support and spare parts.

Technical Specifications
Operation Temperature	max. 400 °C in distillation flask
Final Cut Temperature	max. 540 - 575 °C AET (depending on product)
Operation Pressure	0.1 - 10 mmHg (Torr)
Flask Size	10 L (stainless steel)
Charge	3.3 - 6.7 L
Fraction Collector	12 x 1,000 mL
Material	borosilicate glass 3.3, SS 316 L/Ti, PTFE, FPM
Power Supply	230/400 V or 208/480 V, 3P + N + PE, 60 Hz; Others on request
Power Consumption	maximum approx. 22.2 kW (single outlet, not including PC or optional calibration stations)
Operational Environment	+10 - +30 °C
Dimensions (L x D x H)	approx. 1.7x 1.1 x2.6 m (incl. circulators, vacuum pump and control cabinet; Options may require an extension of these measurements)
