Setting up an ASTM D1160 distillation system isn’t complicated when you know what matters.
If you’re working with crude oil, biodiesel, or other petroleum products, precision is the only way to get consistent results. This ASTM D1160 distillation apparatus setup guide cuts through the guesswork and gives you the exact steps to follow.
You’ll see how to assemble your system, calibrate for reduced pressure, and manage temperature, volume, and boiling points to meet ASTM standards. We’ll also cover safety checks, data accuracy tips, and smart options that save time and reduce variability across every test.
Key Takeaways
- How to properly setup and perform a calibration to get reliable ASTM D1160 results.
- Reduced pressure testing protects product integrity and delivers precise boiling data.
- The right equipment streamlines your process and minimizes testing errors.
Why Installing the ASTM D1160 the Right Way Matters
Inconsistent data, sample loss, or vacuum leaks usually point to one thing: setup errors. Even a loose connection or uncalibrated sensor can throw off results and waste time and materials.
ASTM D1160 was designed to fix a specific problem. Some materials, like biodiesel, crude oil, and heavy fuels, break down under atmospheric pressure. This test method uses reduced pressure to lower the boiling range and prevent thermal damage. For consistency, your system must be airtight, clean, and properly calibrated.
Accurate setup keeps your volume consistent, your pressure stable, and your temperature readings trustworthy. Labs working with petroleum products or biodiesel depend on this test for reliable analysis and compliance. Precision isn’t optional—it’s part of the standard.
Why Reduced Pressure Matters for Boiling Points
The boiling range tells you how a material behaves under heat, which is critical for refining, process control, and product classification. However, for high-boiling materials, testing at atmospheric pressure can cause thermal breakdown before accurate data is collected.
The ASTM D1160 test method solves this by using reduced pressure to lower the boiling point, allowing samples to vaporize without damage. This gives more accurate results and protects the integrity of the product.
Here’s how D1160 compares to other ASTM methods:
- ASTM D86: Works for lighter products but not for high boiling points
- ASTM D2887: Faster, uses simulated distillation, but doesn’t measure real vaporization or volume
- ASTM D1160: Ideal for high-boiling petroleum products, crude oil, and biodiesel under real conditions
When compliance, accuracy, and physical testing matter, D1160 is the standard users rely on.
ASTM Standards and Safety Tips
Every part of the ASTM D1160 test method is designed with repeatability, safety, and data integrity in mind. That means staying within strict limits and using the right equipment for the job.
Here are the core setup specs defined by ASTM standards:
- Pressure range: 0.13 to 6.7 kPa (1 to 50 mm Hg) under reduced pressure
- Volume: 200 mL sample size, accurately measured
- Flask: 500 mL, clean and rated for the test
- Maximum liquid temperature: 400 °C
- Boiling range: Data should reflect actual and atmospheric equivalent values
Users must follow each step in the procedures closely. That includes verifying equipment calibration, maintaining a clean system, and using the proper glassware to handle volatile or heat-sensitive materials.
On the safety side, don’t overlook basics:
- Inspect all joints and seals before each test
- Never exceed the specified temperature or pressure limits
- Use a cold trap and proper ventilation to control vapor release
- Monitor the display readings frequently during each run
Skipping steps or cutting corners with this standard puts your data, equipment, and operators at risk. Precision and protection go hand in hand when working with high-temp distillation under ASTM D1160.
Getting Started: Distillation Apparatus Assembly
A consistent ASTM D1160 test starts with a properly assembled system. If parts are mismatched or connections aren’t sealed, you’ll spend more time troubleshooting than collecting usable data. The setup might look complex at first, but when done right, it’s accurate and more efficient.
What’s included in a standard setup
To meet the standard and support accurate analysis, your ASTM D1160 distillation system should include:
- Heating mantle: Delivers stable, controlled heat to bring the flask contents to the target temperature
- Distillation column: Separates vapor based on boiling points under reduced pressure
- Vacuum pump: Maintains the required low-pressure range
- Condenser and receiver: Cools and collects the vaporized product for volume measurement
- Cold trap: Captures excess vapors, keeping the system clean and protecting the pump
Some systems may come pre-assembled, but most require manual setup. Accuracy starts here.
Assembly and leak testing
Start with clean, dry components. Assemble in the following order:
- Connect the flask to the heating mantle and secure it under the column
- Attach the condenser and receiver, aligning them with the cold trap
- Connect the vacuum lines, checking for tight, sealed fittings
- Position the display units and sensors for easy monitoring during the test
Once assembled, perform a leak test. Apply pressure to the system and monitor for any drops over time. A leak-free setup is key to getting consistent volume recovery and accurate boiling range results.
Every part of the apparatus affects delivery, safety, and final data quality. Skipping setup steps or using off-spec equipment is a common cause of failed runs. For accurate, repeatable tests, start with a clean system and a tested assembly.
Calibrating for Precision: Temperature and Pressure Checks
Accurate temperature and pressure readings are critical for any ASTM D1160 test. Without proper calibration, your data may misrepresent the true behavior of the product, leading to incorrect analysis and wasted materials.
How to calibrate temperature and vacuum sensors
Use certified tools to check each sensor:
- Temperature: Use a dry block calibrator or temperature bath, focusing on the 100–400 °C range
- Vacuum: Use a reference gauge to verify readings in the 1 to 50 mm Hg range
Do a quick check before each test and a full recalibration every few months or as needed.
ACT and AET accuracy
Stable temperature and pressure readings keep your AET and ACT values valid. Skipping calibration affects both and can lead to failed standardization or inaccurate product classification.
A calibrated system saves time, protects your results, and gives users reliable, repeatable data.
Running the ASTM Method: Step-by-Step Test Execution
Once your system is assembled and calibrated, it’s time to run the test. Each part of the process, from prep to setup and data capture, must be consistent for accurate results.
Sample prep and system check. Start by measuring exactly 200 mL of a clean, dehydrated sample. Inspect the flask, joints, and connections to confirm the system is leak-free and ready. Any residue or vacuum issue will impact pressure and skew your data.
Pressure and temperature settings. Adjust the system to the correct reduced pressure range: 0.13 to 6.7 kPa. Set your bath and receiver temperatures based on the product’s expected boiling behavior. Use manual or automated controls to maintain a steady distillation rate.
Collecting results. Record your boiling points at the IBP, 5–95% recovery marks, and final point. Capture ACT and AET data using digital tools for better traceability. Each reading helps determine the true behavior of the product under test and supports reliable analysis.
Accuracy Tips: How to Avoid Common Testing Errors
Even with a solid setup, small mistakes can throw off your distillation results. Here’s how to avoid common issues that affect data quality and product accuracy.
Control foaming and pressure drift. Some materials foam under reduced pressure, disrupting volume readings and flow. Lower the heat slightly to manage the bumping of the product. If pressure drifts during the test, check for leaks or vacuum instability. Both will affect your boiling point data.
Keep the system clean. Leftover residue in the flask or column can contaminate your next run. Clean with compatible solvents after each test and watch for buildup from sulfur-containing materials. A clean system gives more consistent results.
Use digital tracking. Manual logging increases the chance of error. Use systems with digital display, volume tracking, and automated data logging to improve accuracy and reduce variability across runs.

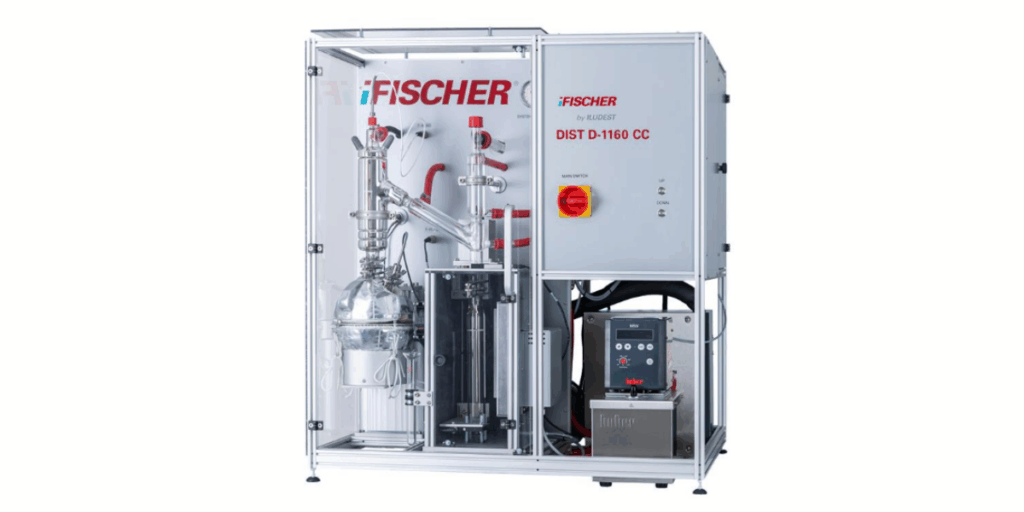

Why Our DIST D-1160 CC System Makes It Easy
At Performance Distillation Solutions, our DIST D-1160 CC system simplifies vacuum distillation with full automation, real-time ACT/AET tracking, and precise pressure control. It’s built for labs, refineries, and biodiesel producers who need consistent, accurate results using the full ASTM D1160 method.
With dependable safety features, fast setup, and a user-friendly display, it’s a practical, high-performance option for demanding applications.
We also offer Pro-Pak® column packing, custom column internals, and turnkey distillation systems through ILUDEST. If you’re looking to improve control or data quality, we can help.
Have questions? Call us to speak with a Technical Specialist.
Conclusion
A successful ASTM D1160 test depends on proper assembly, accurate calibration, and steady reduced pressure. From prepping the flask to collecting clean data, every step matters.
A solid setup saves time, protects your product, and improves test quality. It also cuts down on errors and keeps your distillation process efficient and consistent.
If you’re ready to upgrade your process or need help with a specific case, we’re here to help you get it right from the start.
Frequently Asked Questions
What is the ASTM D1160 test method?
ASTM D1160 is a test method for determining the distillation characteristics of petroleum products at a reduced pressure for materials that may decompose if distilled at atmospheric pressure.This method is crucial for evaluating the boiling point range of petroleum fractions and other products like biodiesel.
What is the ASTM compression set standard?
The ASTM compression set standard (ASTM D395) measures how well rubber or elastomer returns to its original shape after being compressed. It’s used to evaluate sealing performance in parts like O-rings and gaskets.
What is the pressure for ASTM D1160?
ASTM D1160 is performed under reduced pressure, usually between 0.13 and 6.7 kPa (1 to 50 mm Hg). This range prevents thermal damage and allows accurate distillation of high-boiling products.
