Overview
The PDS-MPALL-38 is a 38 mm pall ring offering durability and consistent performance across a range of chemical processes. Optimized for medium tower diameters.

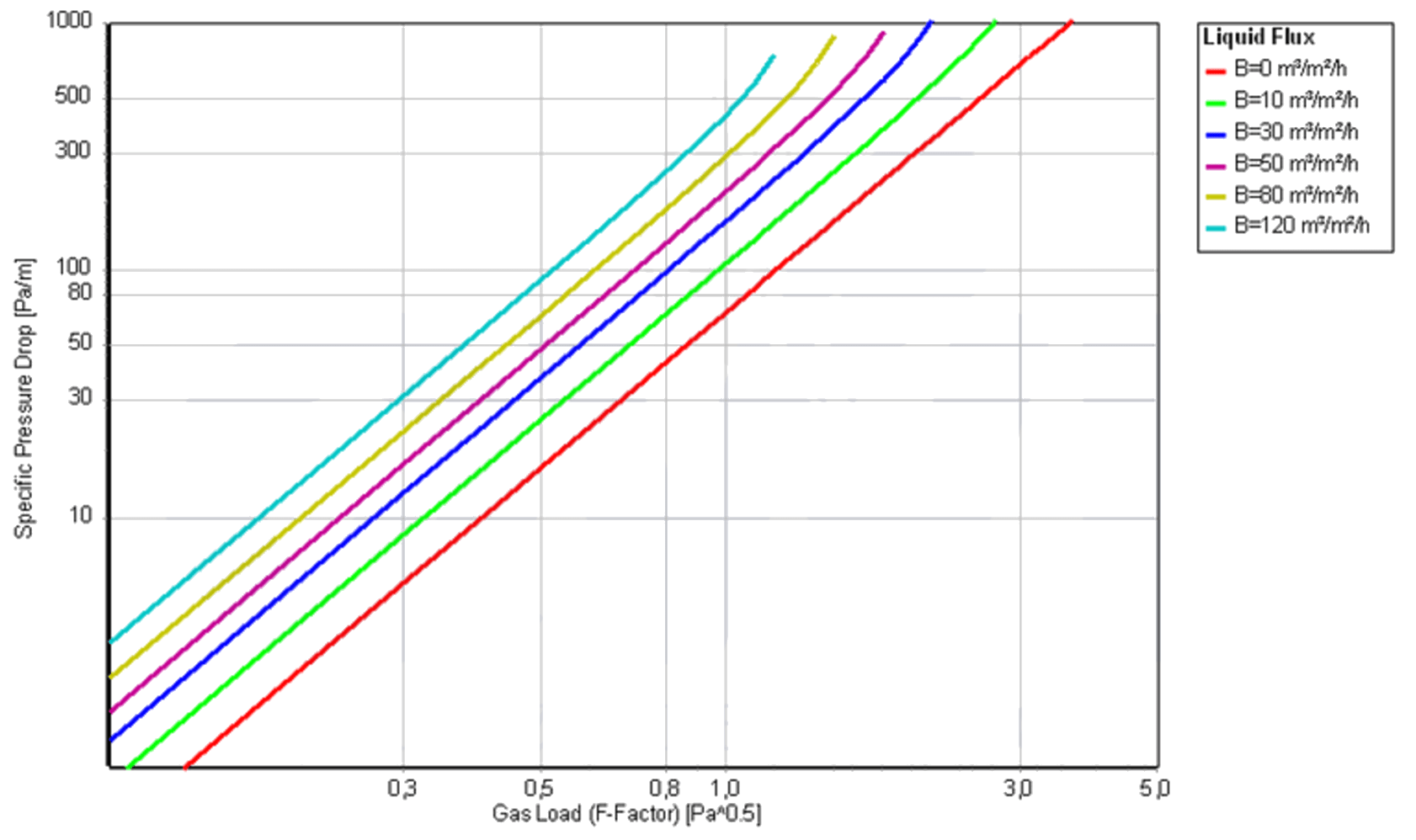

Air-water system pressure drop graph shown above (D/d = 20). Click image to view full size.
Applications
-
Distillation systems
-
Absorption towers (acid gas, ammonia, SO₂)
-
Stripping operations (steam stripping, vacuum stripping)
-
Quench towers & direct-contact cooling
-
Gas degassing and purification
-
High-temperature and corrosive process service
-
Wastewater/treatment scrubbers
-
Vacuum or low-pressure packed-bed processes
Key Specifications
| Property | Value |
|---|---|
| Nominal Size | 38 mm |
| Type | Metal Random Packing |
| Style | Metal Pall-Ring Tower Packing |
| Dimensions | 38 mm x 38 mm x 38 mm |
| Material Thickness | 0.50 mm |
| Density | 205–210 kg/m³ |
| Surface Area | 130.4 m²/m³ |
| Void Fraction | 96.1% |
| No. of Pieces per m³ | 14,300 |
| Material Options (MOC) | SS304, SS316L, Hastelloy®, Titanium, Carbon Steel |
| Packaging | 1 m³ Jumbo Bag |
