This is a sampling of what we can develop for your solution. Please contact us to discuss your custom systems project today.

Click any image to view a larger photo.

Detail of Machinery in Physics Laboratory

Apparatus for Solvent Recovery

Design pressure:
full vacuum to 0.5 barg (7 psi)

Design temperature:
amb. to 200°C (392°F)

Size:
500 L (130 gal)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

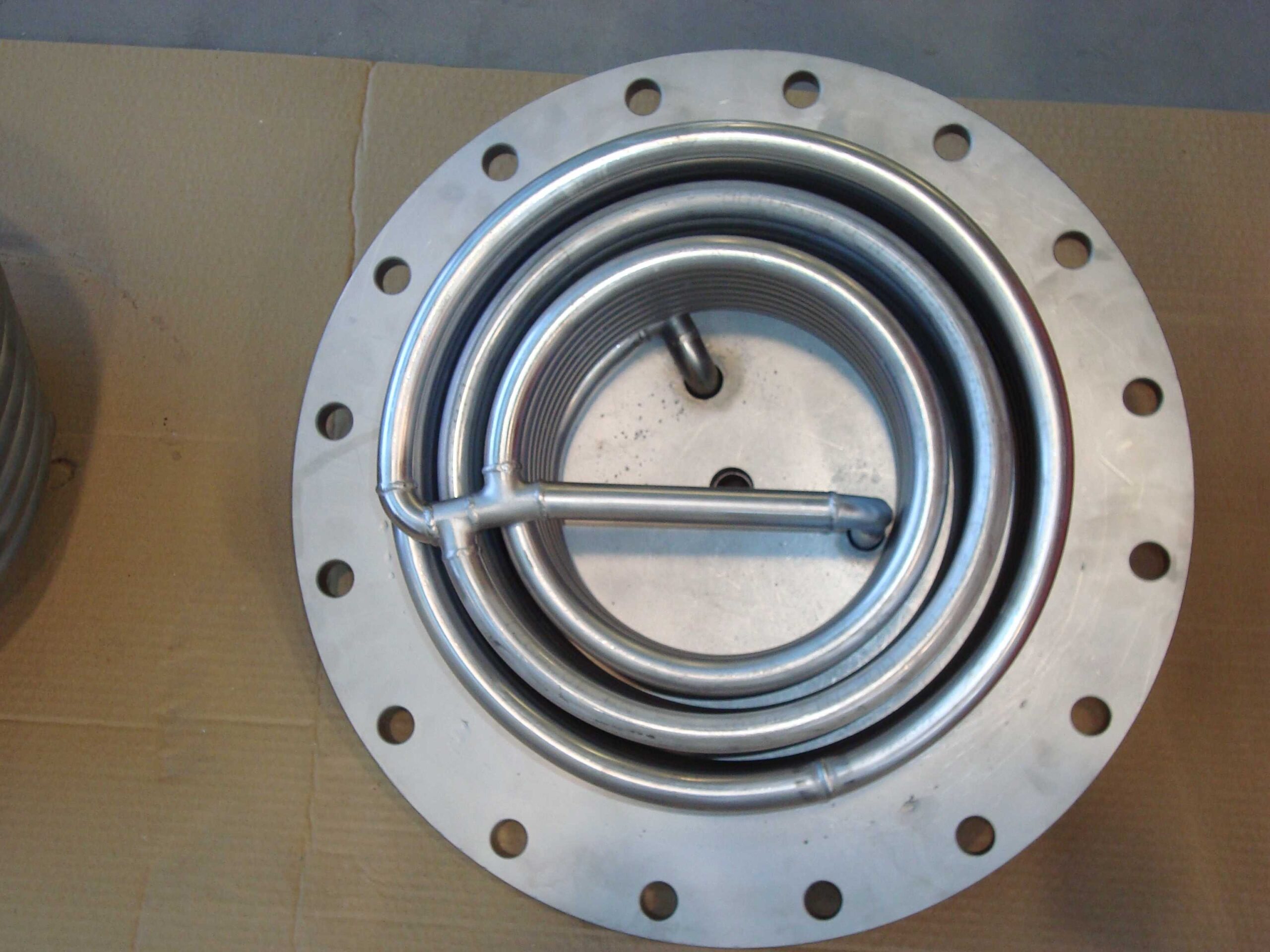

Coil Heat Exchanger

Design pressure:
full vacuum to 6 barg (87 psi)

Design temperature:
amb. to 250°C (482°F)

Size:
DN 300 (12″)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

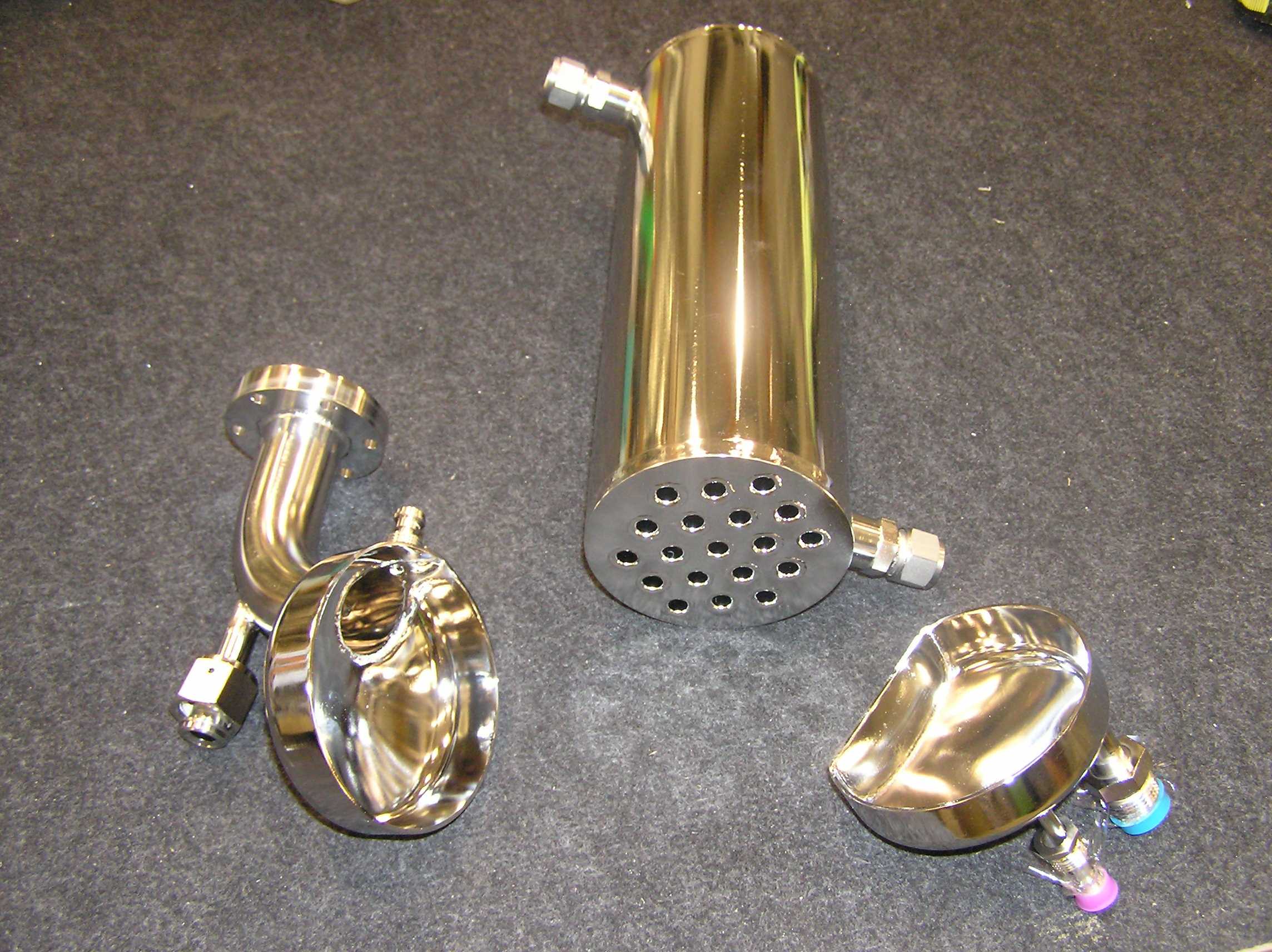

Column Head Before Welding

Design pressure:
full vacuum to 0.5 barg (7 psi)

Design temperature:
amb. to 200°C (392°F)

Size:
80 mm (3″)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

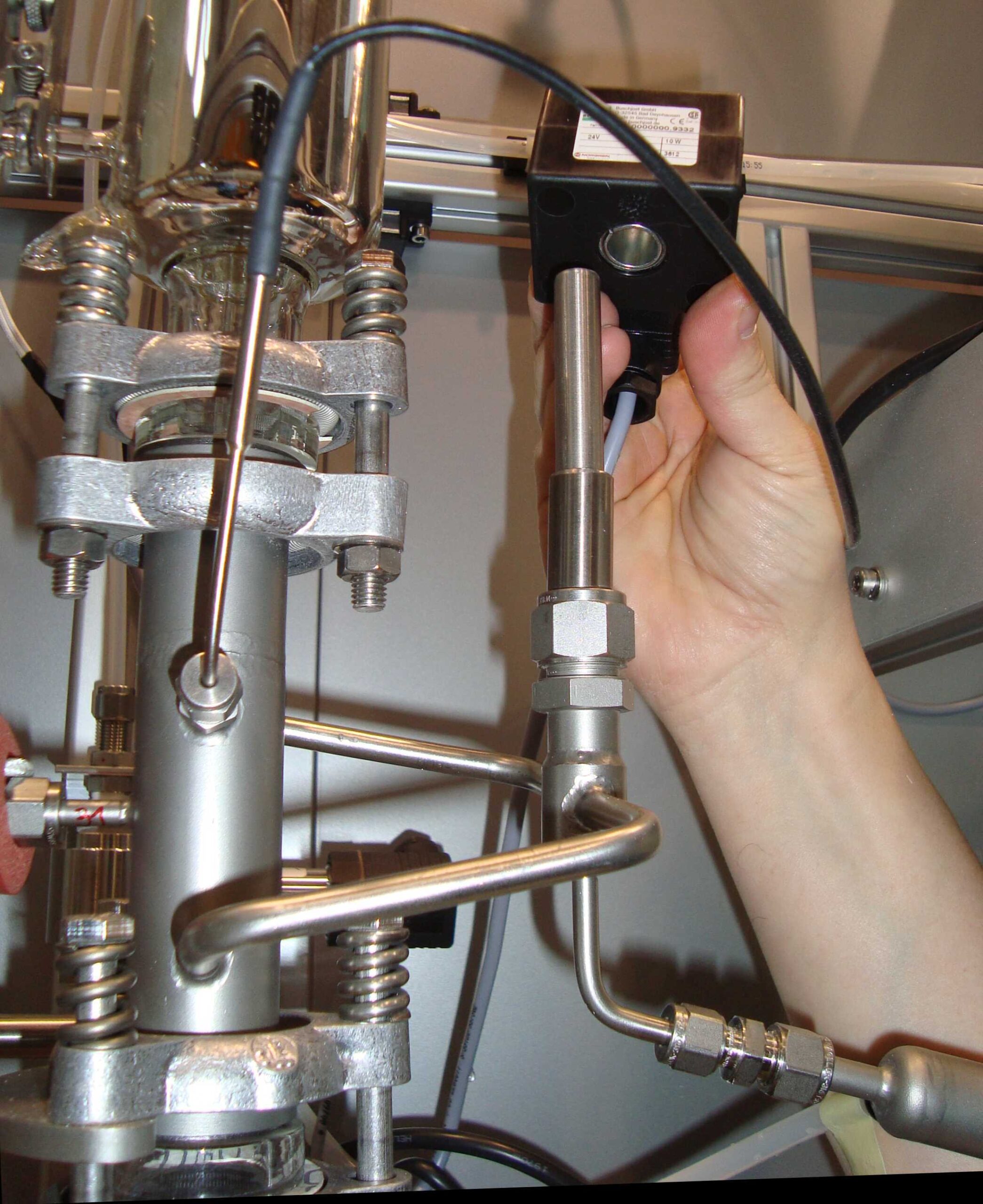

Column Side Draw

Design pressure:
full vacuum to 0.5 barg (7 psi)

Design temperature:
amb. to 200°C (392°F)

Size:
DN 25 (1″)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

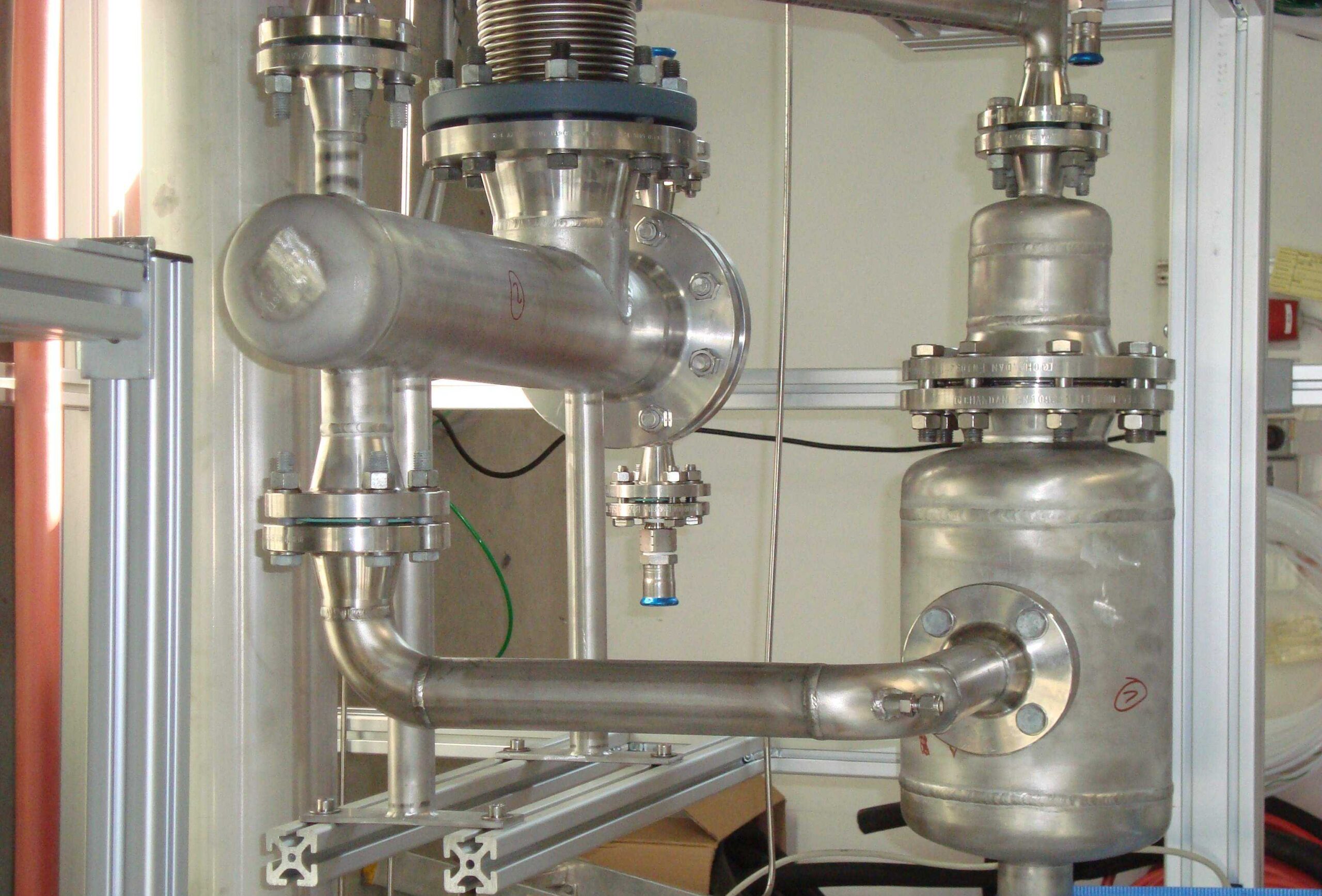

Condenser and Separator

Design pressure:
full vacuum to 10 barg (145 psi)

Design temperature:
amb. to 160°C (320°F)

Size:
DN 100 (4″), DN 200 (8″)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

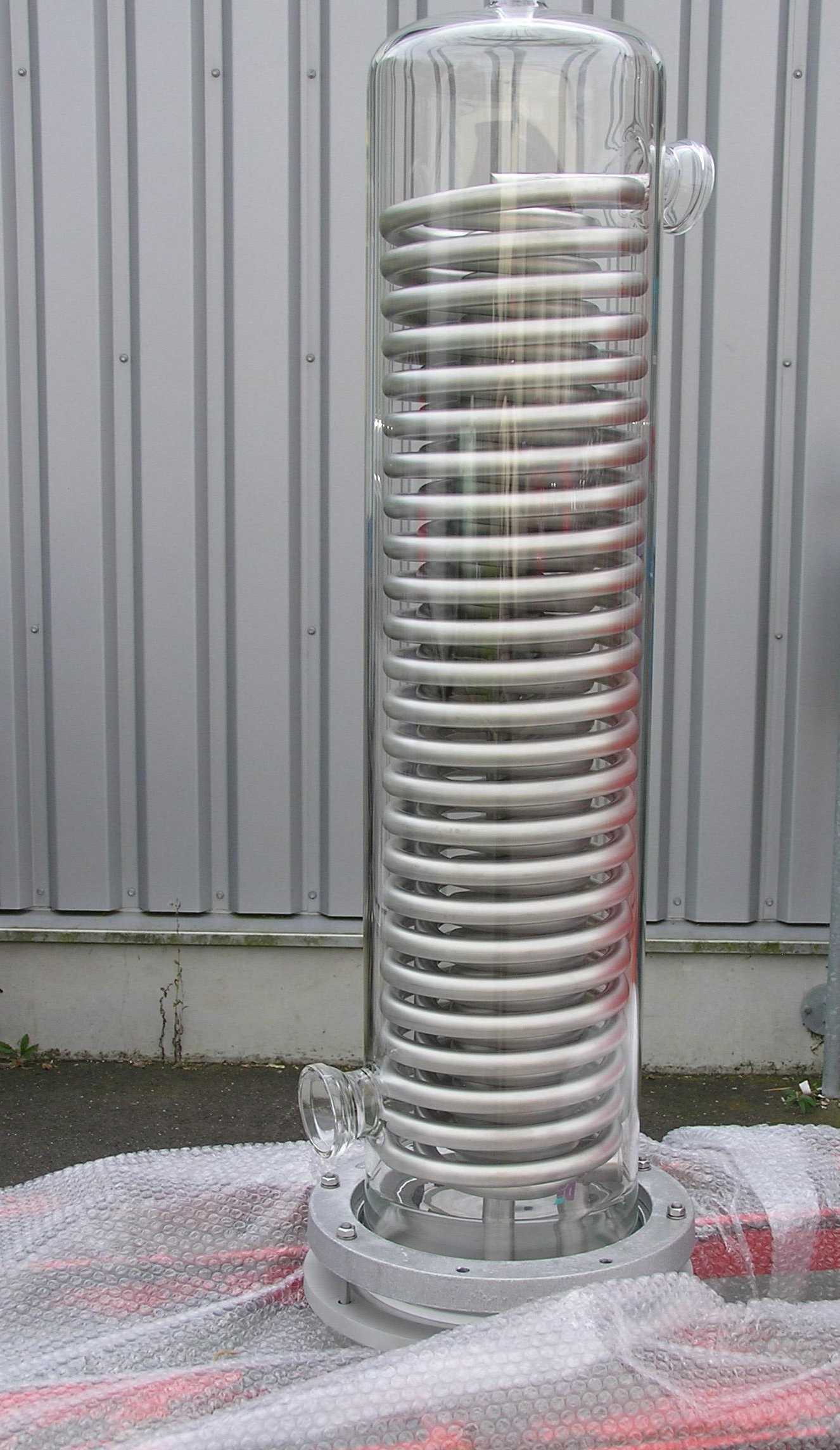

Condenser Glass – Stainless Steel

Design pressure:
0 to 6 barg (87 psi)

Design temperature:
amb. to 200°C (392°F)

Size:
DN 200 (8″)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

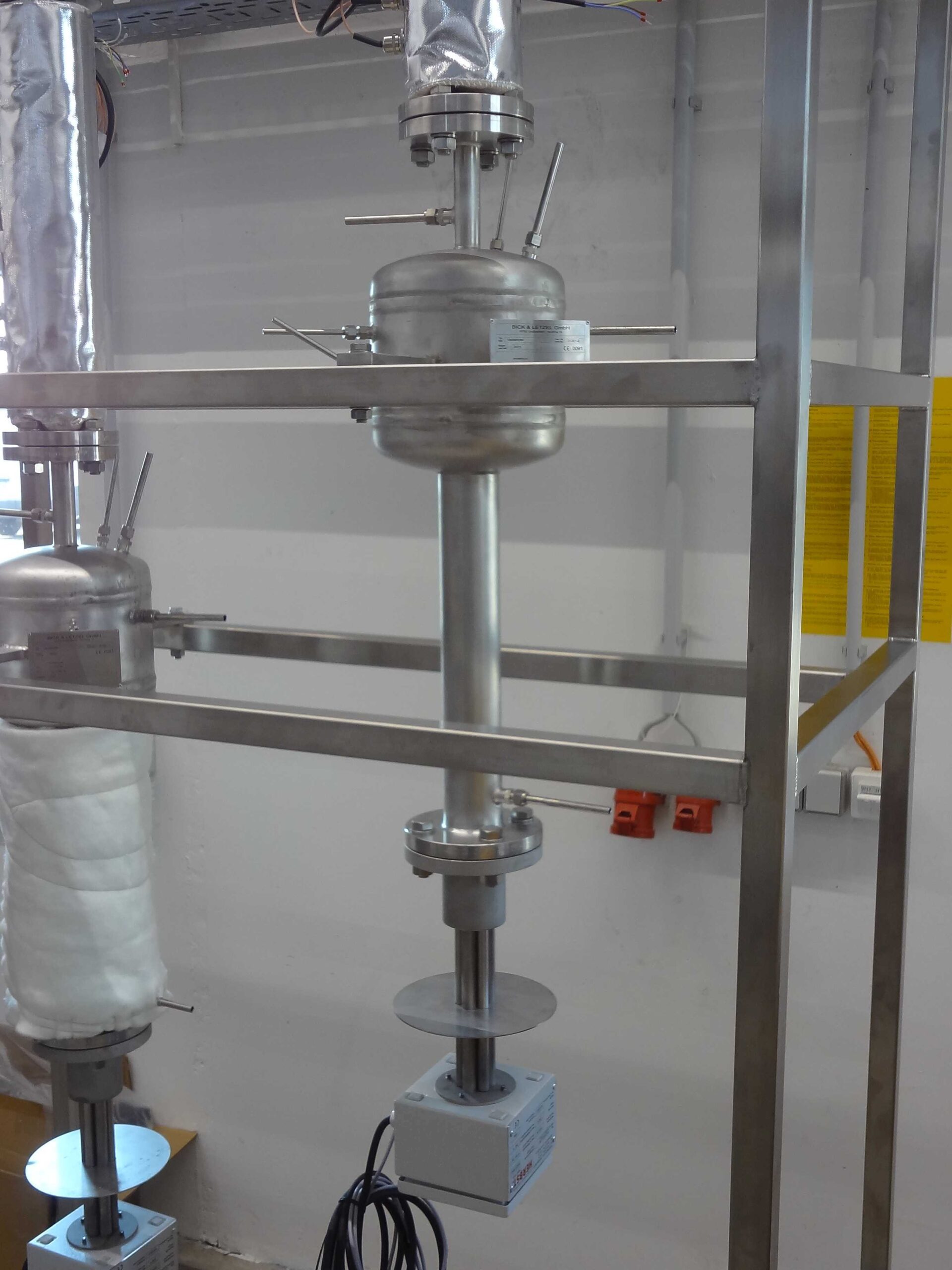

Electrical Reboiler

Design pressure:
full vacuum to 10 barg (145 psi)

Design temperature:
amb. to 400°C (752°F)

Size:
8 L (2 gal)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

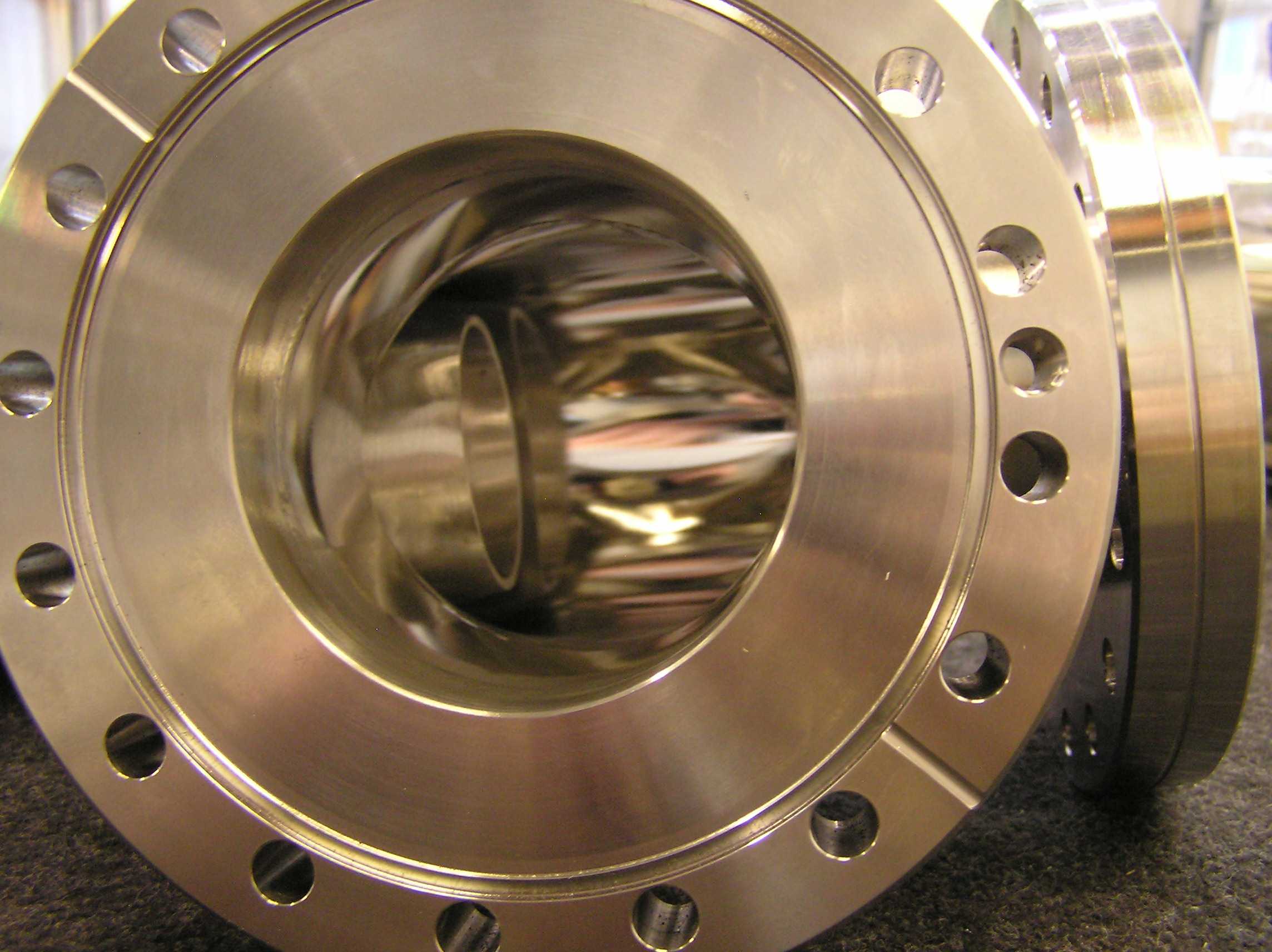

Electropolished Component

Design pressure:
full vacuum to 0.5 barg (7 psi)

Design temperature:
amb. to 200°C (392°F)

Size:
DN 100 (4″)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

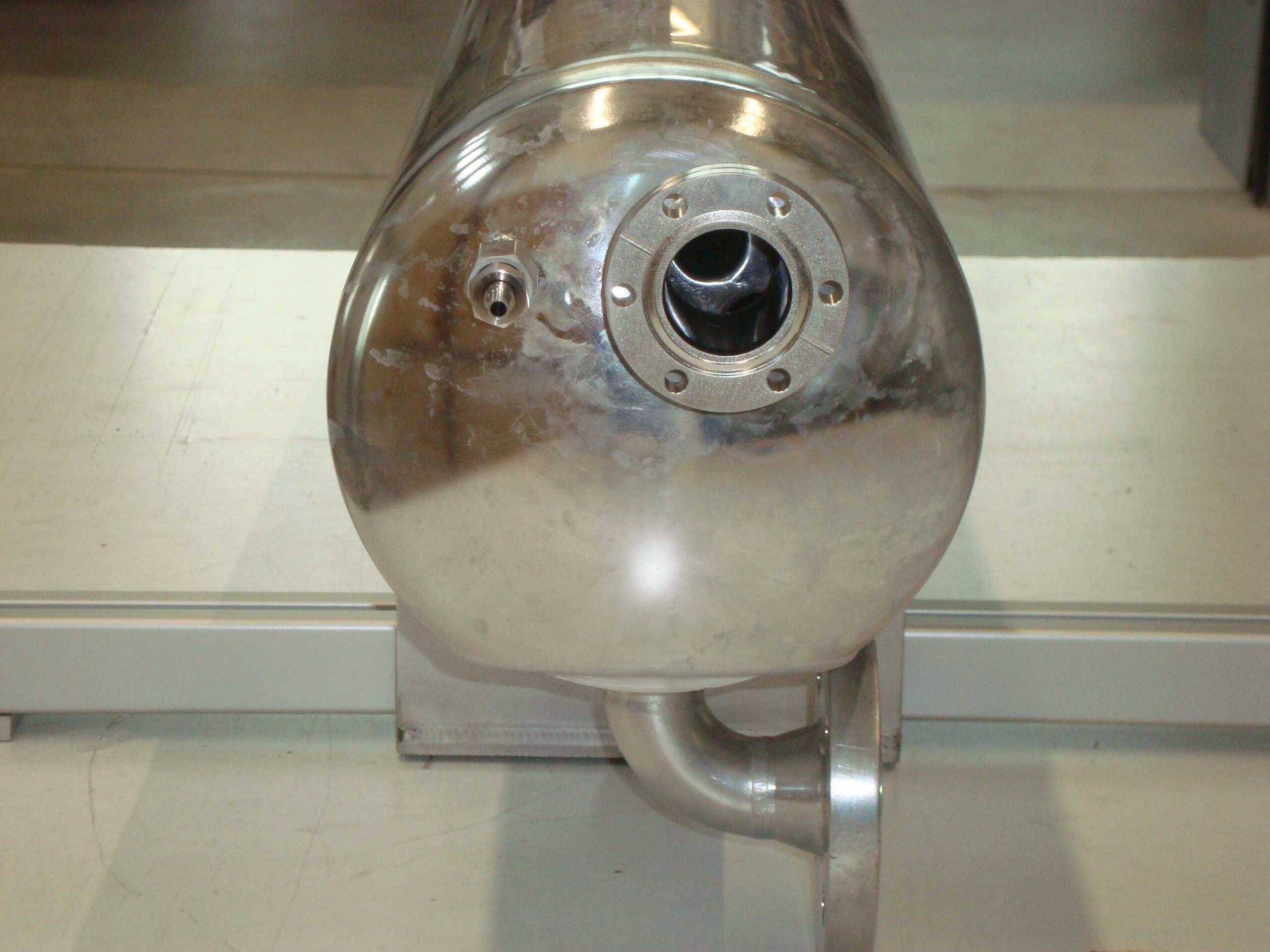

Electropolished Condenser

Design pressure:
full vacuum to 0.5 barg (7 psi)

Design temperature:
amb. to 200°C (392°F)

Size:
DN 100 (4″)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

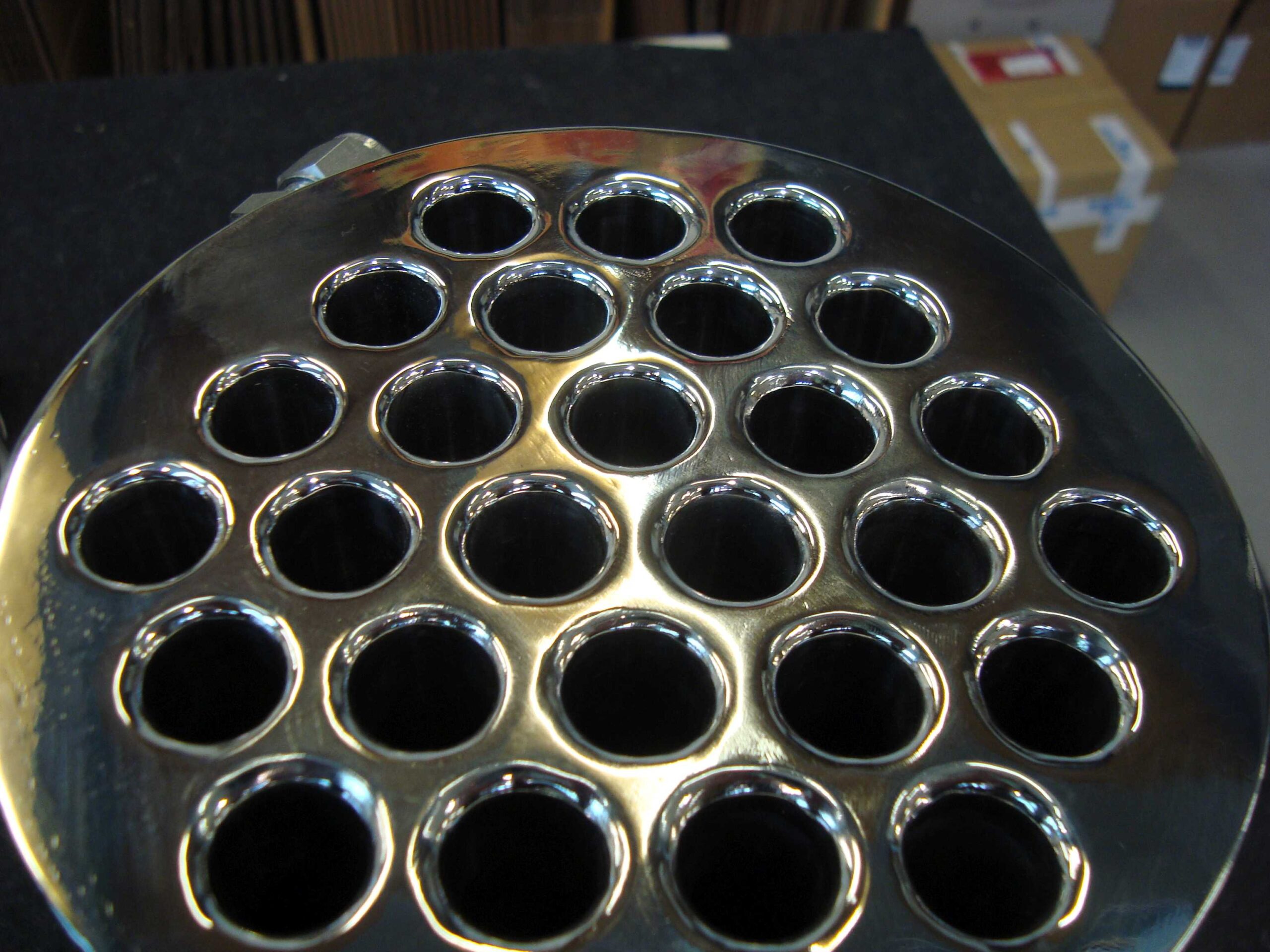

Electropolished Tube Bundle

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

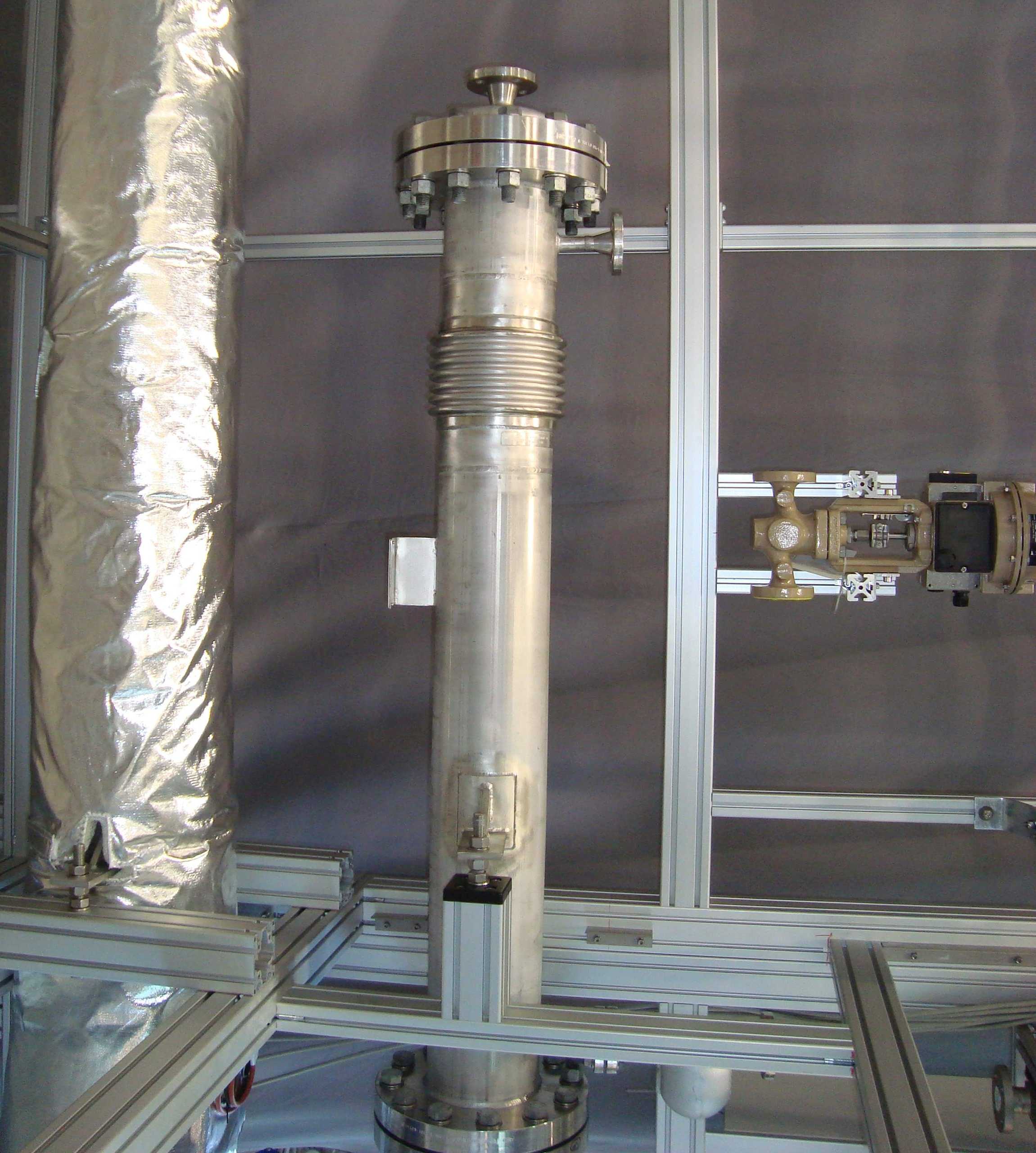

Falling Film Evaporator

Design pressure:
full vacuum to 6 barg (87 psi)

Design temperature:
amb. to 250°C (482°F)

Size:
DN 150 (6″)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

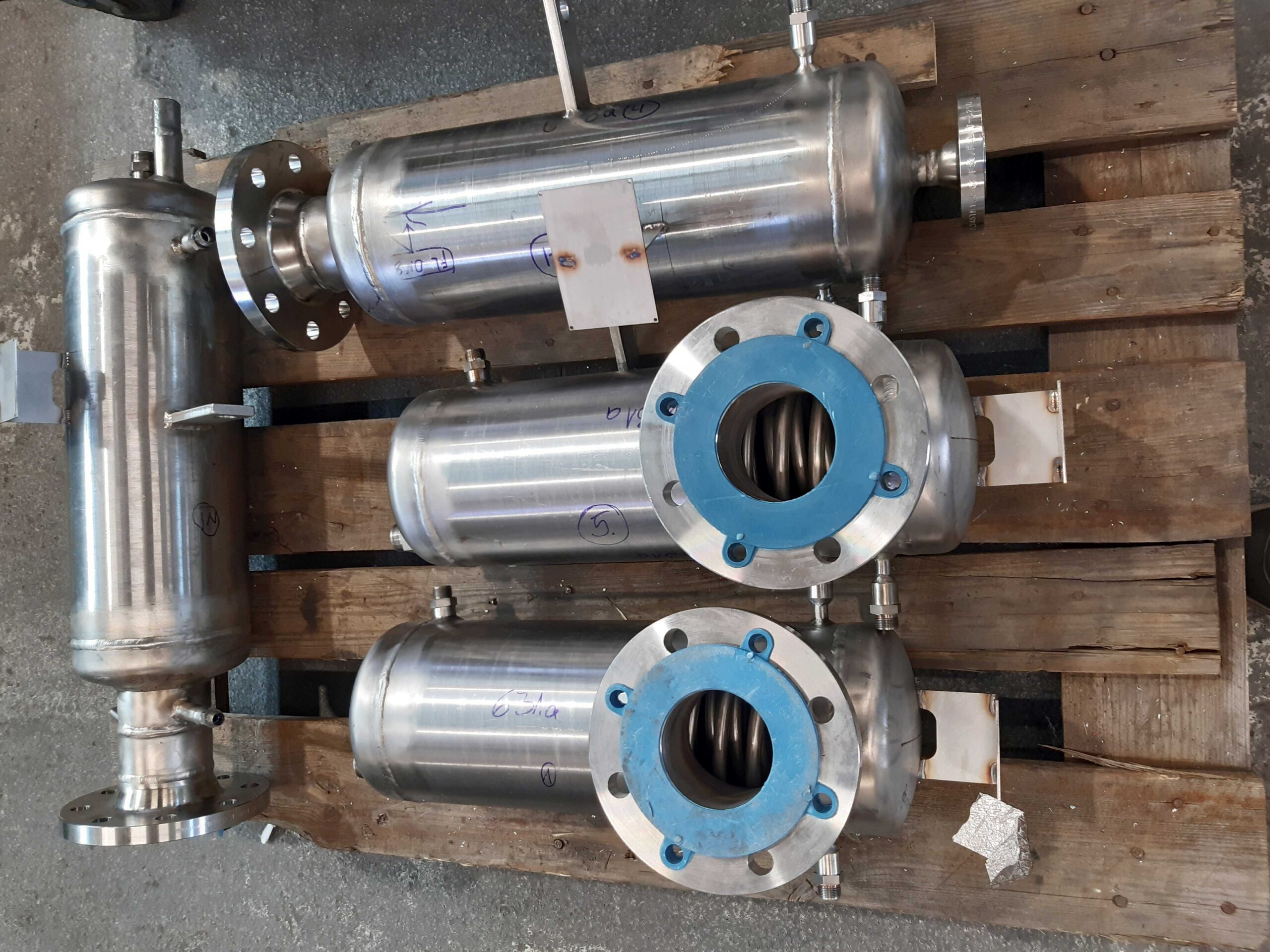

Heat Exchangers

Design pressure:
full vacuum to 10 barg (145 psi)

Design temperature:
amb. to 160°C (320°F)

Size:
flange DN 80 (3″)

Material:
S 32750

Detail of Machinery in Physics Laboratory

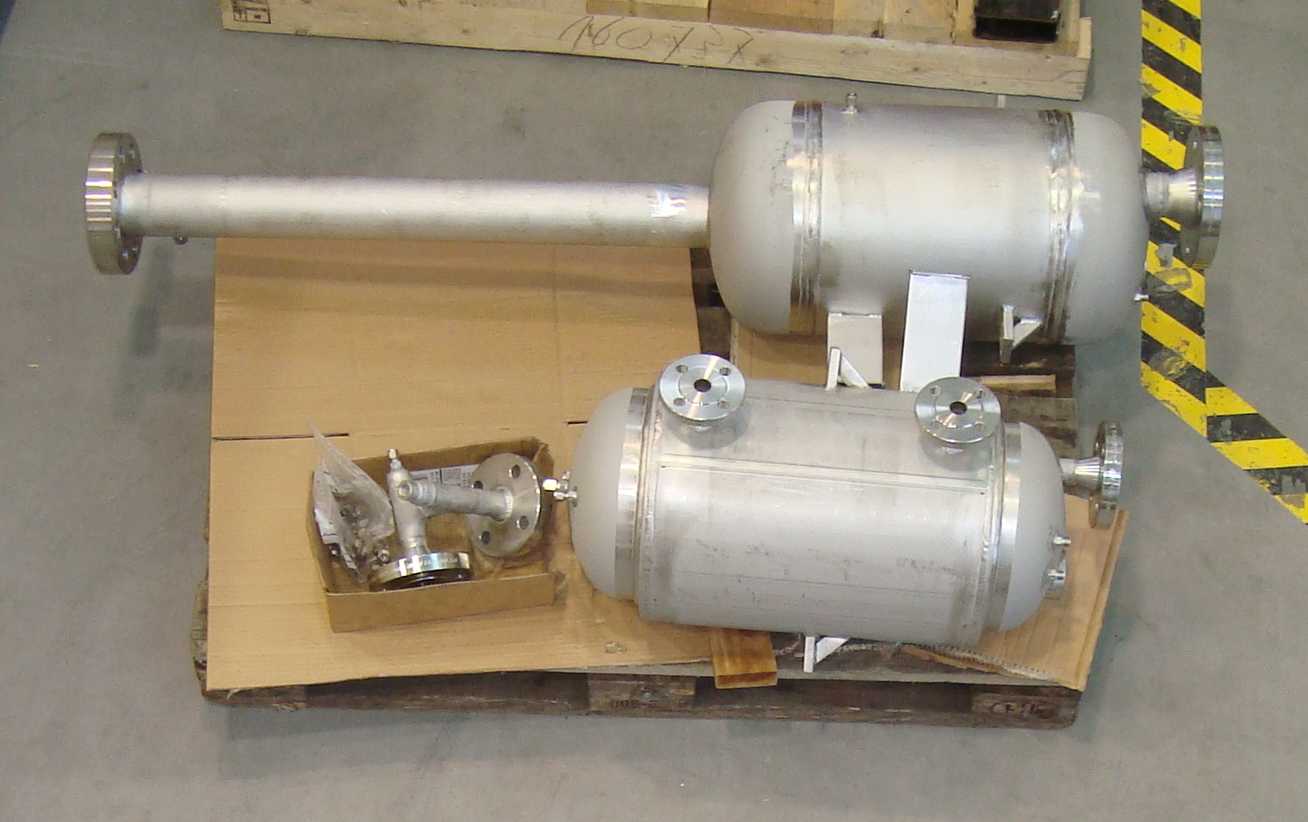

High Pressure Components

Design pressure:
full vacuum to 110 barg (1595 psi)

Design temperature:
-90 … +60°C (-130 … +140°F)

Size:
20 L (5 gal), 35 L (9 gal)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

Low Dead Volume Column Head

Design pressure:
full vacuum to 0.5 barg (7 psi)

Design temperature:
-10 … +150°C (14 … 302°F)

Size:
flange DN 100 (4″)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

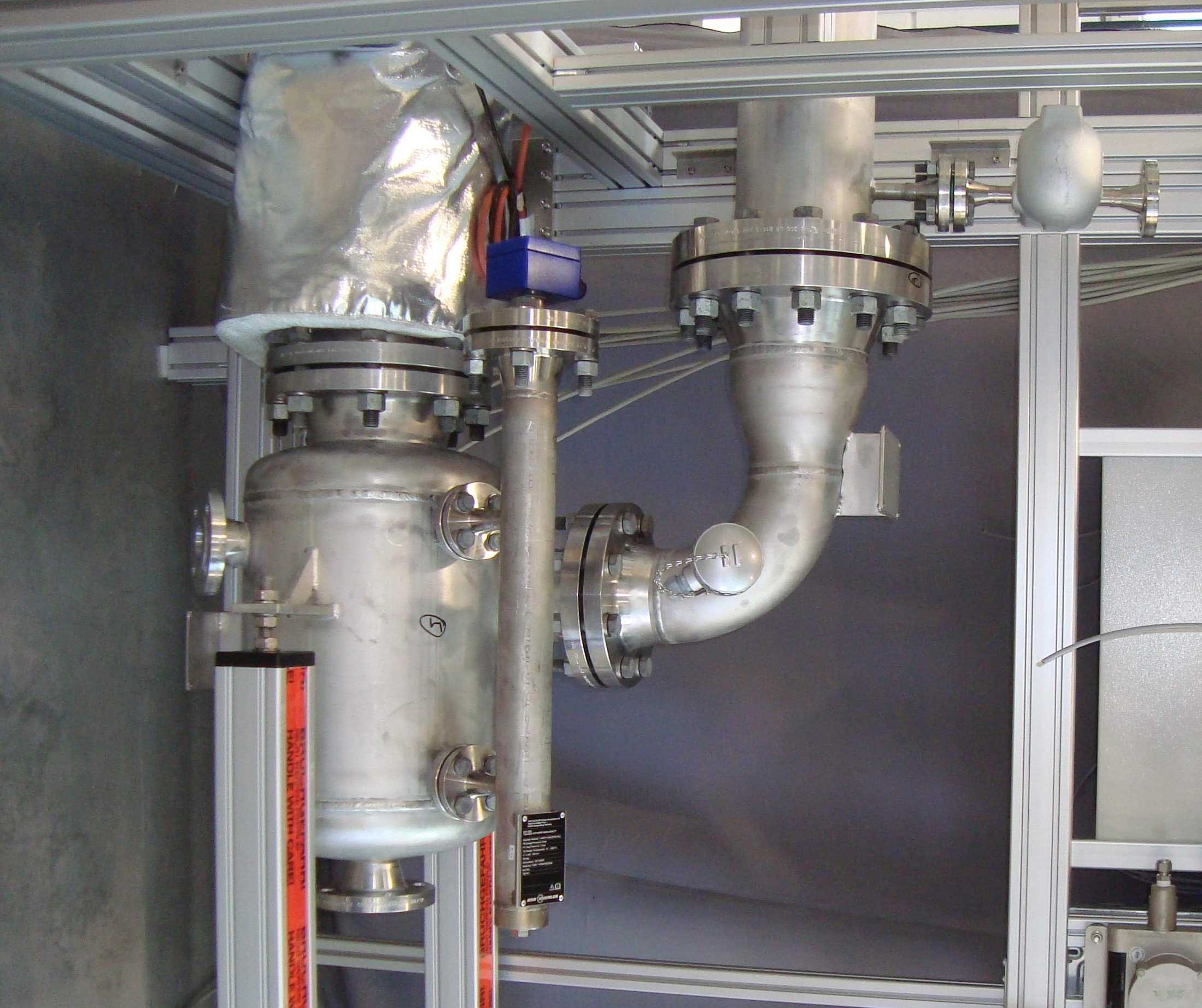

Pilot Plant Components

Design pressure:
full vacuum to 10 barg (145 psi)

Design temperature:
amb. to 160°C (320°F)

Size:
30 L (8 gal)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

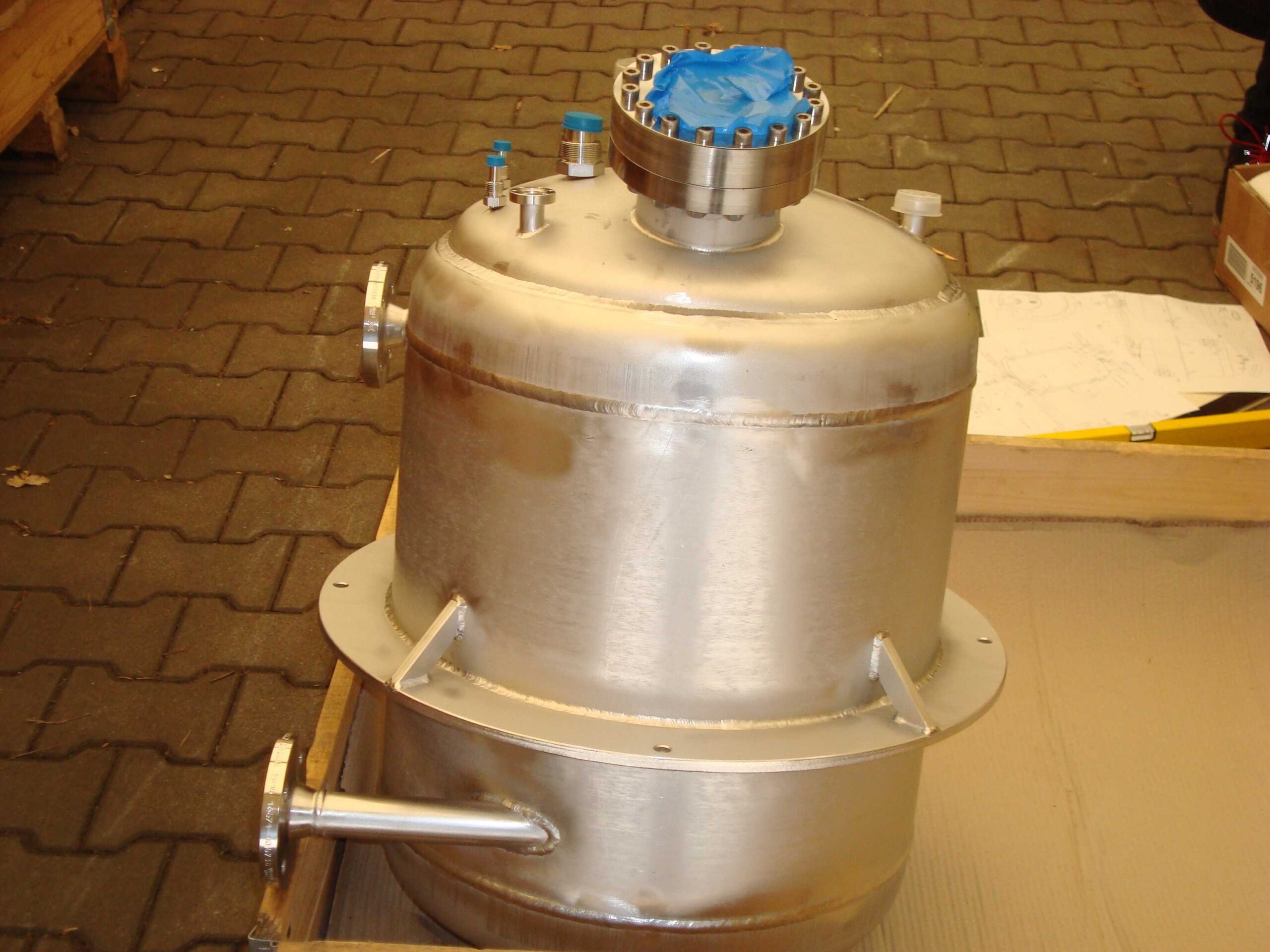

Reboiler with Low Dead Spots

Design pressure:
full vacuum to 0.5 barg (7 psi)

Design temperature:
amb. to 120°C (248°F)

Size:
50 L (13 gal)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

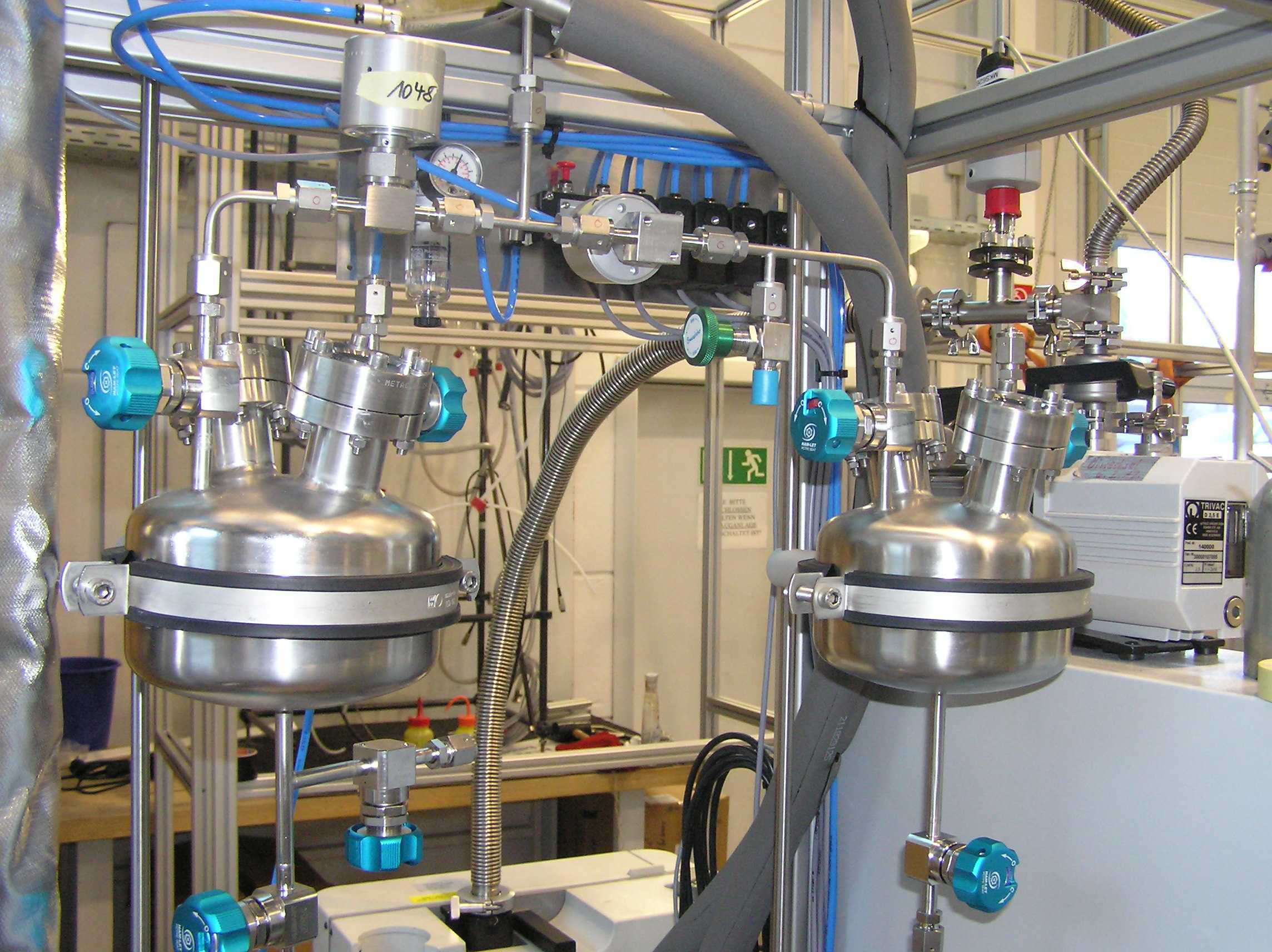

Receiver Vessels

Design pressure:
full vacuum to 0.5 barg (7 psi)

Design temperature:
amb. to 100°C (212°F)

Size:
2 L (0.5 gal), 3 L (0.8 gal)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

Small Scale Receiver Vessel

Design pressure:
full vacuum to 10 barg (145 psi)

Design temperature:
-20 … +80°C (176°F)

Size:
0.2 L (0.05 gal)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

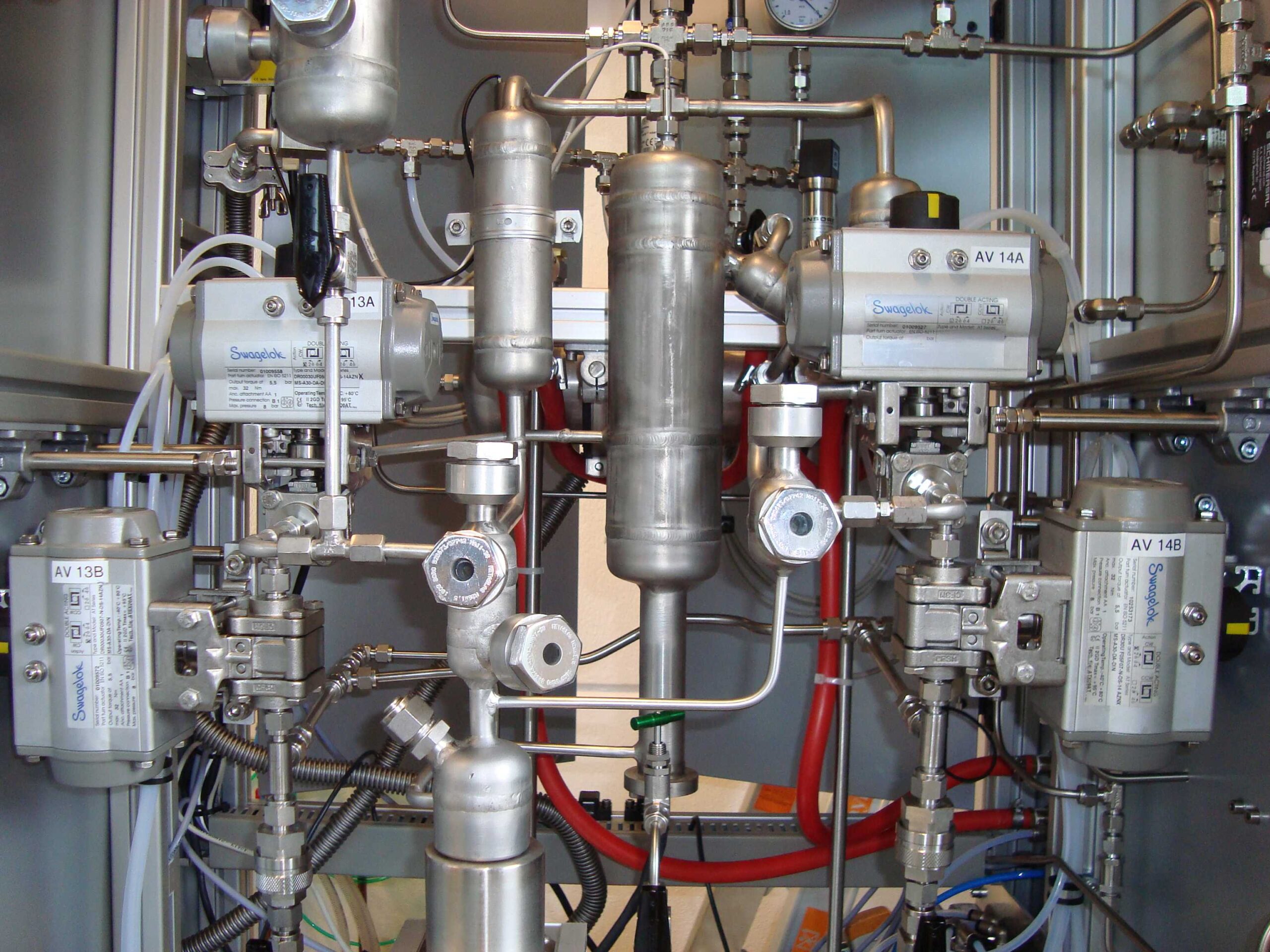

Small Scale Apparatus

Design pressure:
full vacuum to 50 barg (725 psi)

Design temperature:
amb. to 350°C (662°F)

Size:
80 mL (0.02 gal)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

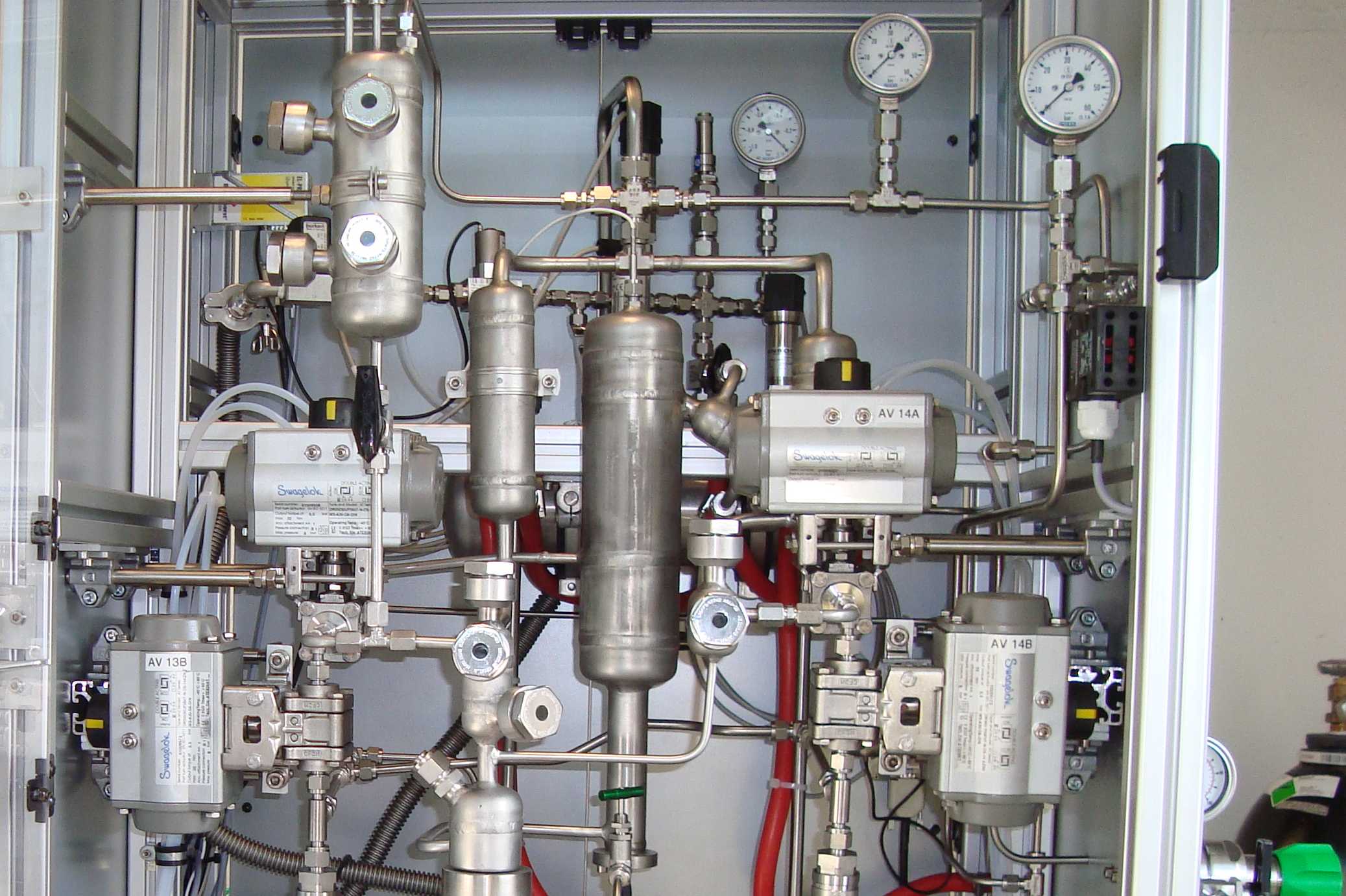

Small Scale Apparatus

Design pressure:
full vacuum to 50 barg (725 psi)

Design temperature:
amb. to 350°C (662°F)

Size:
80 mL (0.02 gal)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

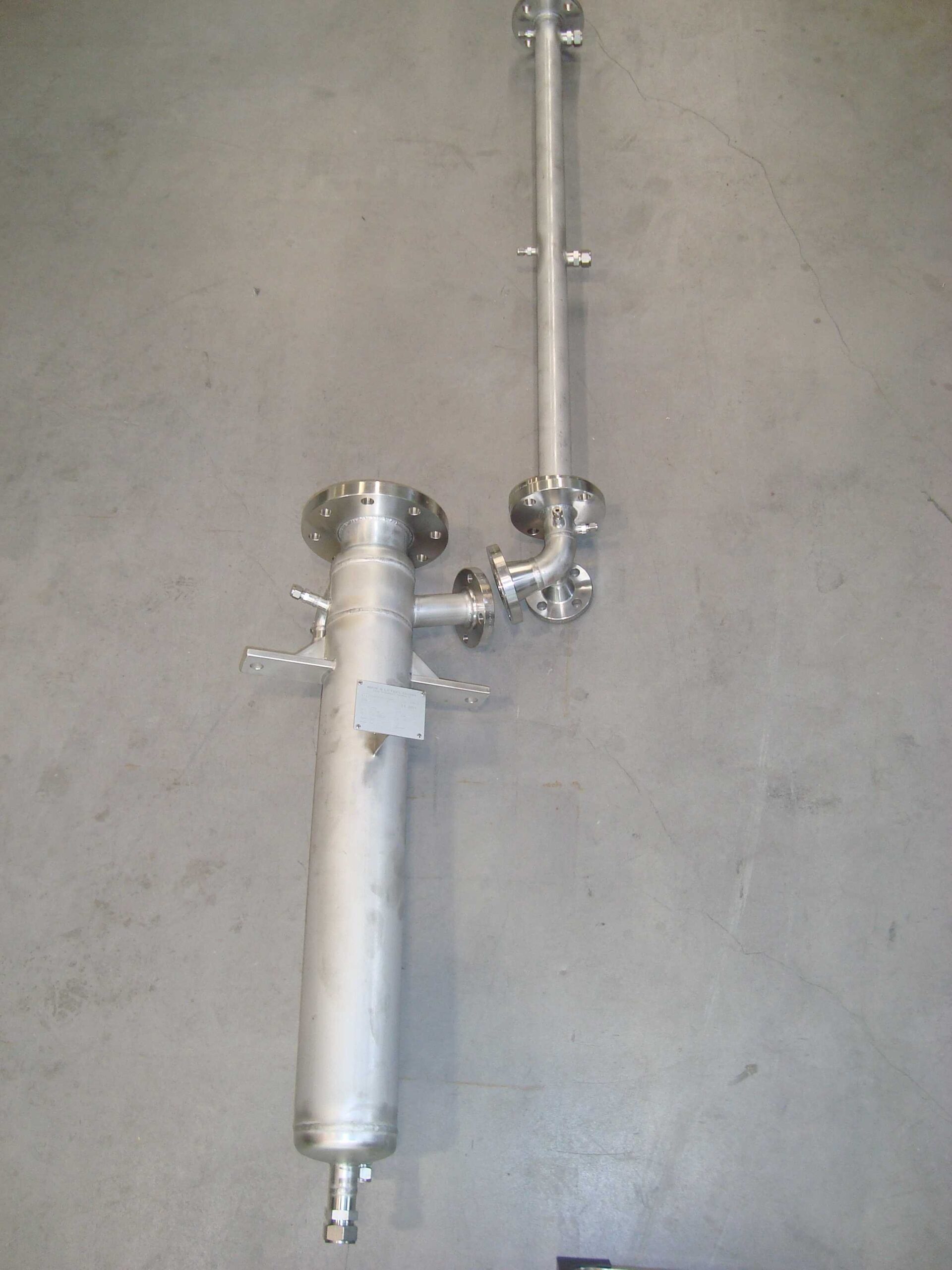

Thin Film Evaporator Components

Design pressure:
full vacuum to 7 barg (100 psi)

Design temperature:
0 … +250°C (32 … 482°F)

Size:
DN 100 (4″), DN 50 (2″)

Material:
SS 316 Ti

Detail of Machinery in Physics Laboratory

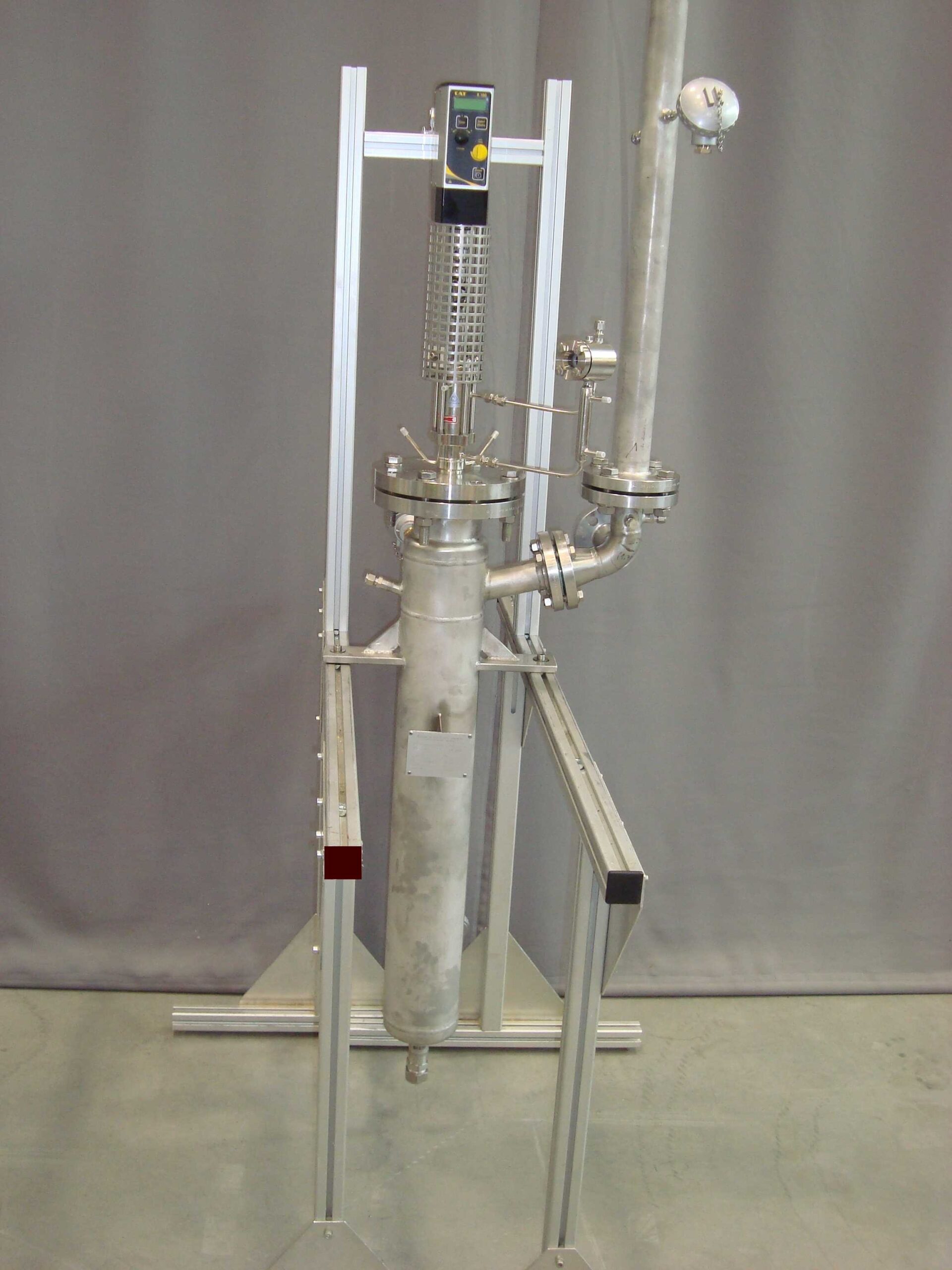

Thin Film Evaporator Test Installation

Design pressure:
full vacuum to 7 barg (100 psi)

Design temperature:
0 … +250°C (32 … 482°F)

Size:
DN 100 (4″), DN 50 (2″)

Material:
SS 316 Ti
