Overview

The PDS-IMTP-25 is a 25 mm IMTP-style metal tower packing engineered for efficient mass transfer in distillation and absorption columns. With a high surface area of 225.8 m²/m³, low pressure drop, and a void fraction of 96.6%, this packing is ideal for high-performance separation processes.

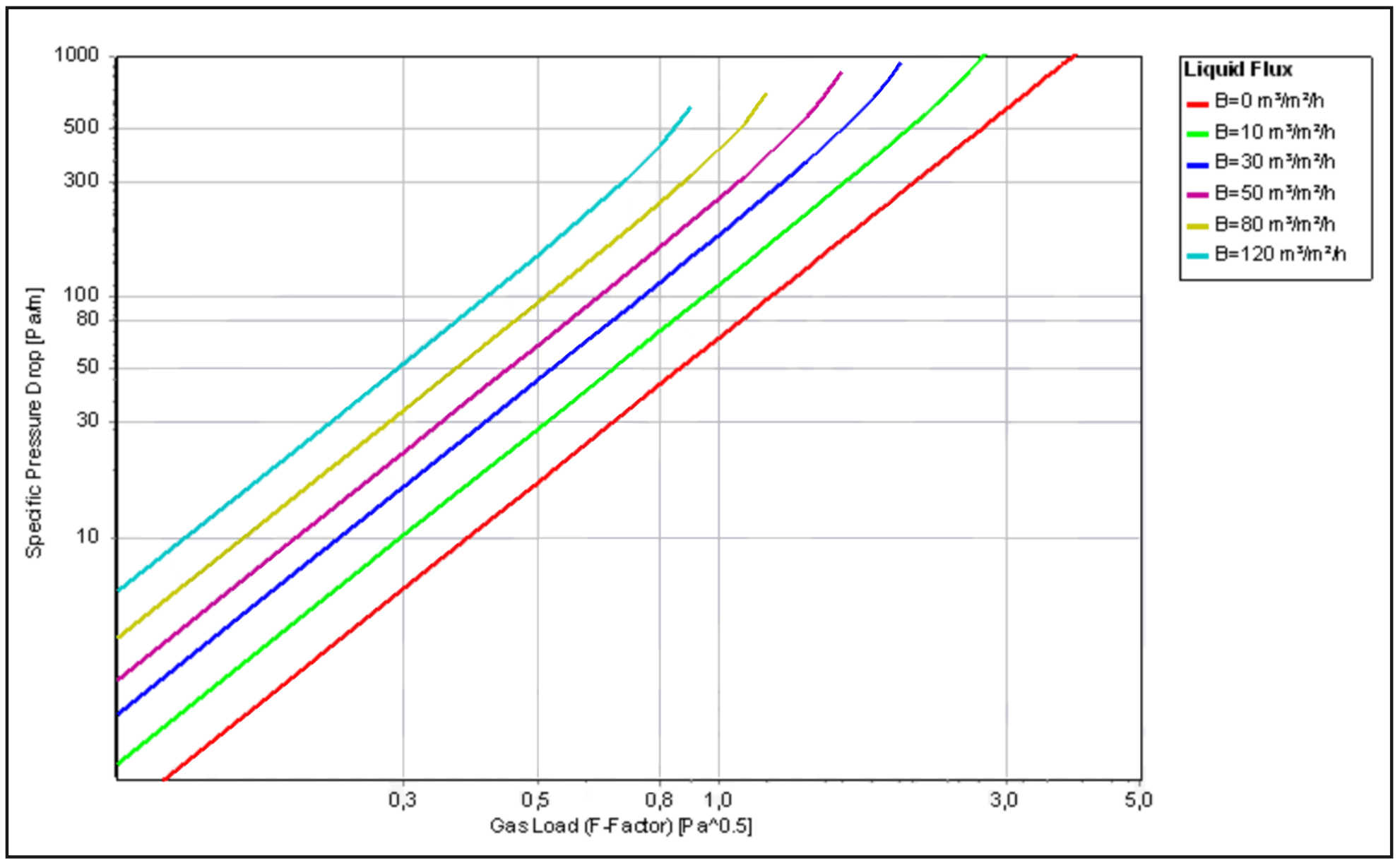

PDS-IMTP-25 Pressure Drop Graph for Air-Water System at D/d=20

As shown, the PDS-IMTP-25 exhibits a low-pressure drop across a broad flow range, supporting energy-efficient separation processes.

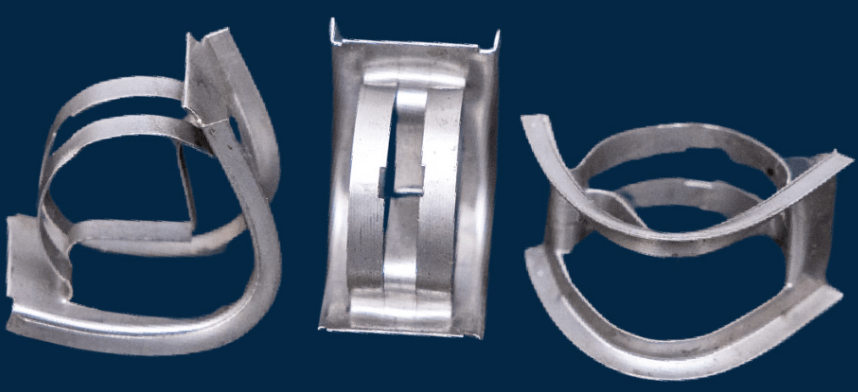

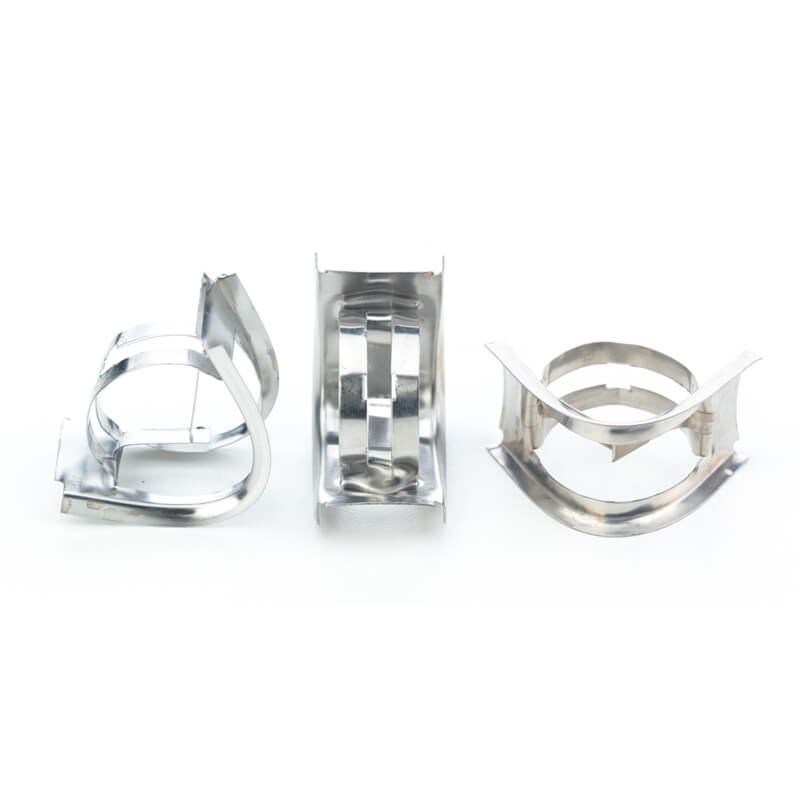

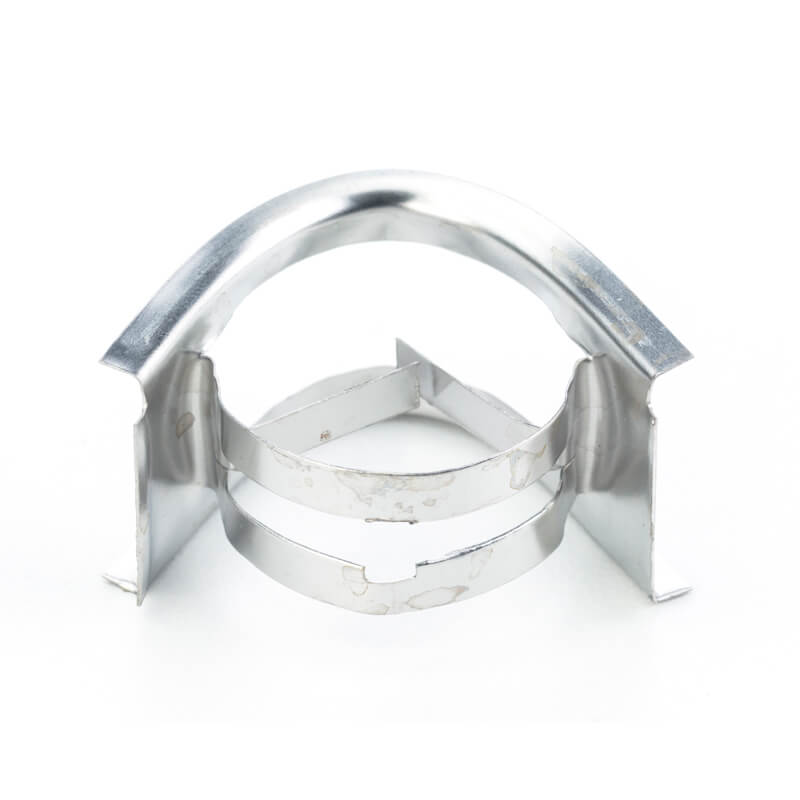

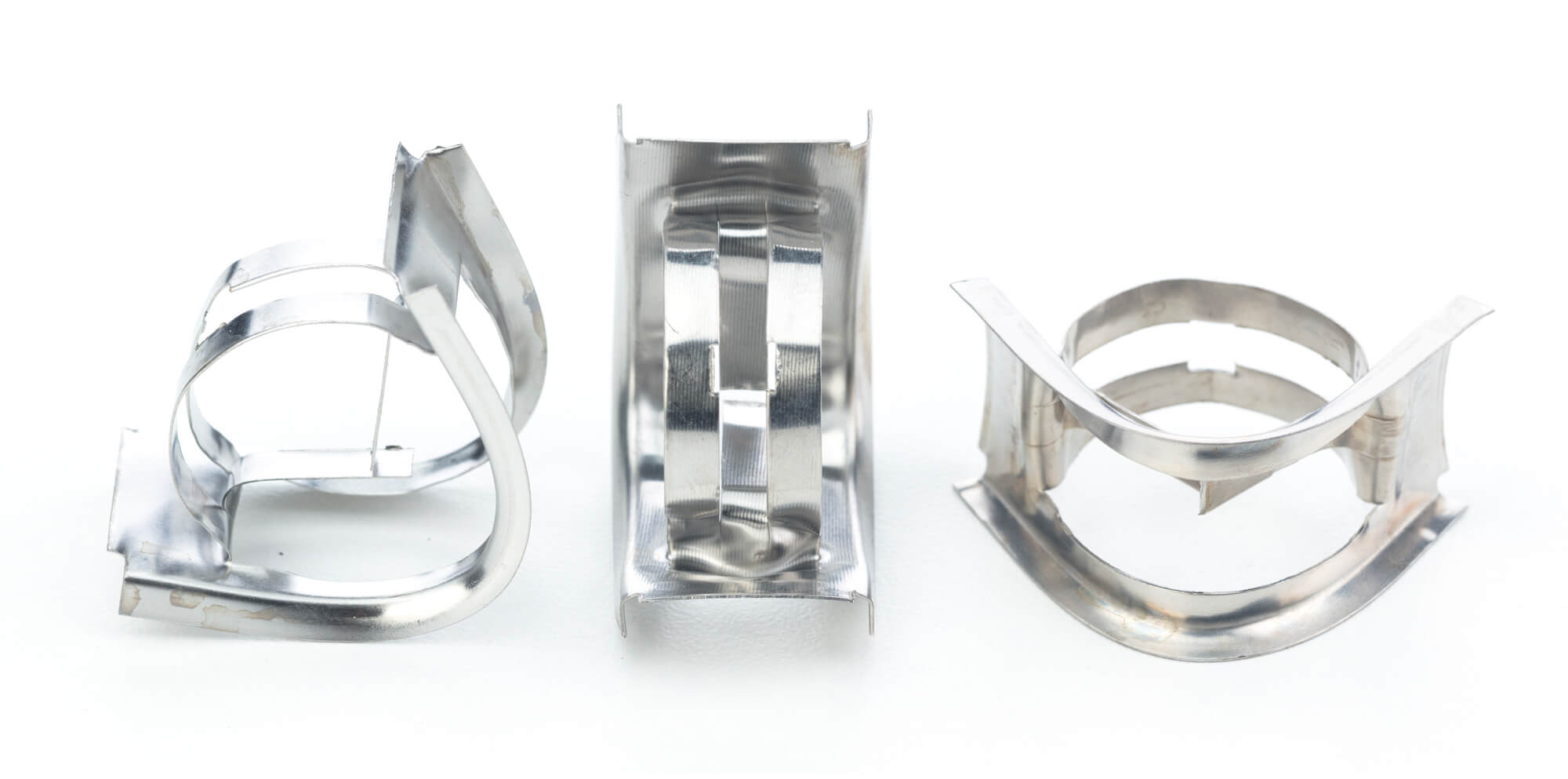

PDS-IMTP-25 Metal Tower Packing

Key Specifications

Property Value
Nominal Size 25 mm
Type Metal Random Packing
Style IMTP Metal Tower Packing
Dimensions 30 mm x 15 mm x 19 mm
Material Thickness 0.25 mm
Density 222–226 kg/m³
Surface Area 225.8 m²/m³
Void Fraction 96.6%
No. of Pieces per m³ 135,000
Material Options (MOC) SS304, SS316L, Hastelloy®, Titanium, Carbon Steel, custom materials upon request
Packaging 1 m³ Jumbo Bag

Applications

  • Petrochemical processing

  • Refining

  • Biofuel production

  • Chemical manufacturing

  • Environmental scrubbing

Engineered for Efficiency

All performance values assume a column diameter-to-packing ratio (D/d) of 20. For customized applications, our engineering team is ready to assist.
