Overview

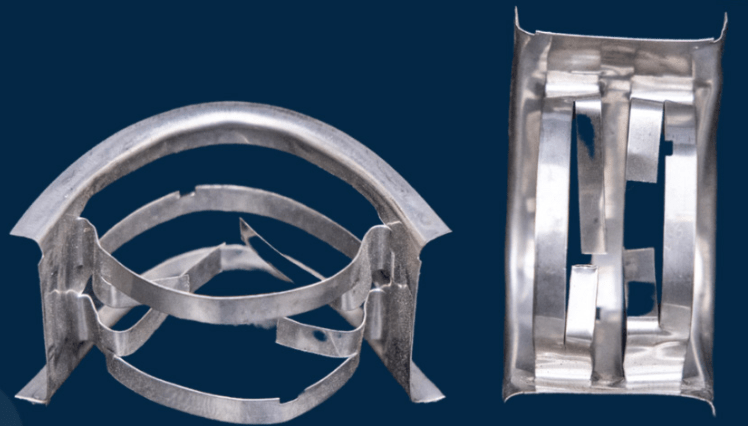

The PDS-IMTP-40 is a 40 mm IMTP-style metal random packing designed to improve mass transfer and reduce pressure drop in absorption and distillation columns. Its optimized geometry and lightweight construction make it ideal for a wide range of chemical processing environments.

Pressure Drop Performance

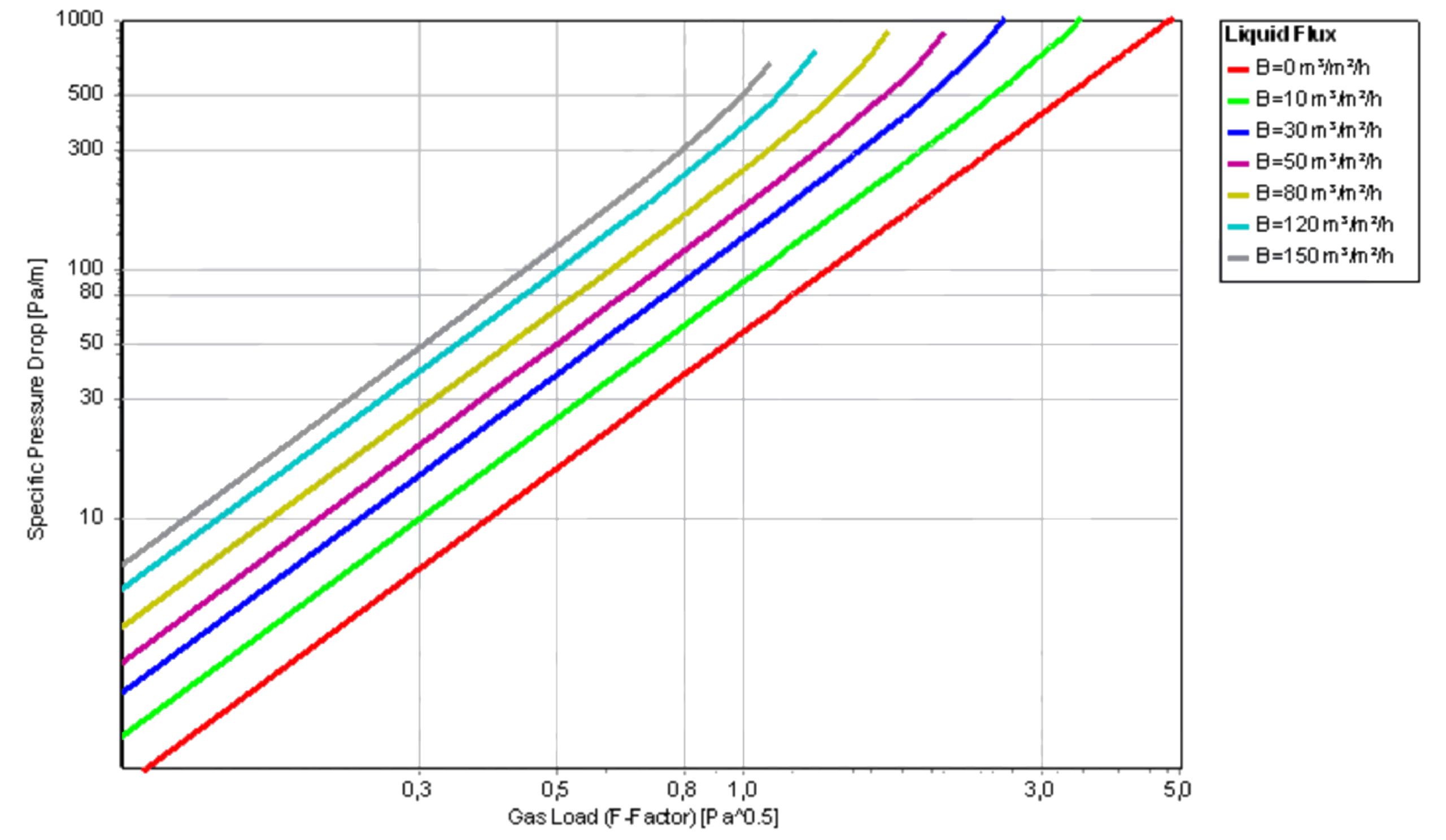

Understanding pressure drop is key to ensuring your column performs efficiently. The graph below illustrates the air-water pressure drop characteristics for the PDS-IMTP-40 (D/d = 20):

PDS-IMTP-40 Metal Tower Packing

Key Specifications

Property Value
Nominal Size 40 mm
Type Metal Random Packing
Style IMTP Metal Tower Packing
Dimensions 40 mm x 22 mm x 30 mm
Material Thickness 0.25 mm
Density 151–155 kg/m³
Surface Area 150.8 m²/m³
Void Fraction 97.7%
No. of Pieces per m³ 50,000
Material Options (MOC) SS304, SS316L, Hastelloy®, Titanium, Carbon Steel, custom options upon request
Packaging 1 m³ Jumbo Bag

Applications

  • Fine chemical production
  • Oil & gas processing
  • Waste gas scrubbing
  • Distillation and stripping systems

Performance You Can Trust

Designed using the industry-standard D/d ratio of 20, the PDS-IMTP-40 offers consistent, reliable results in both lab and industrial-scale operations.
