Overview

The PDS-IMTP-50 offers a reliable 50 mm IMTP-style design for optimizing mass transfer in distillation, scrubbing, and absorption systems. With a surface area of 100.0 m²/m³ and 98.0% void fraction, it delivers low-pressure drop and high throughput.

Pressure Drop Performance

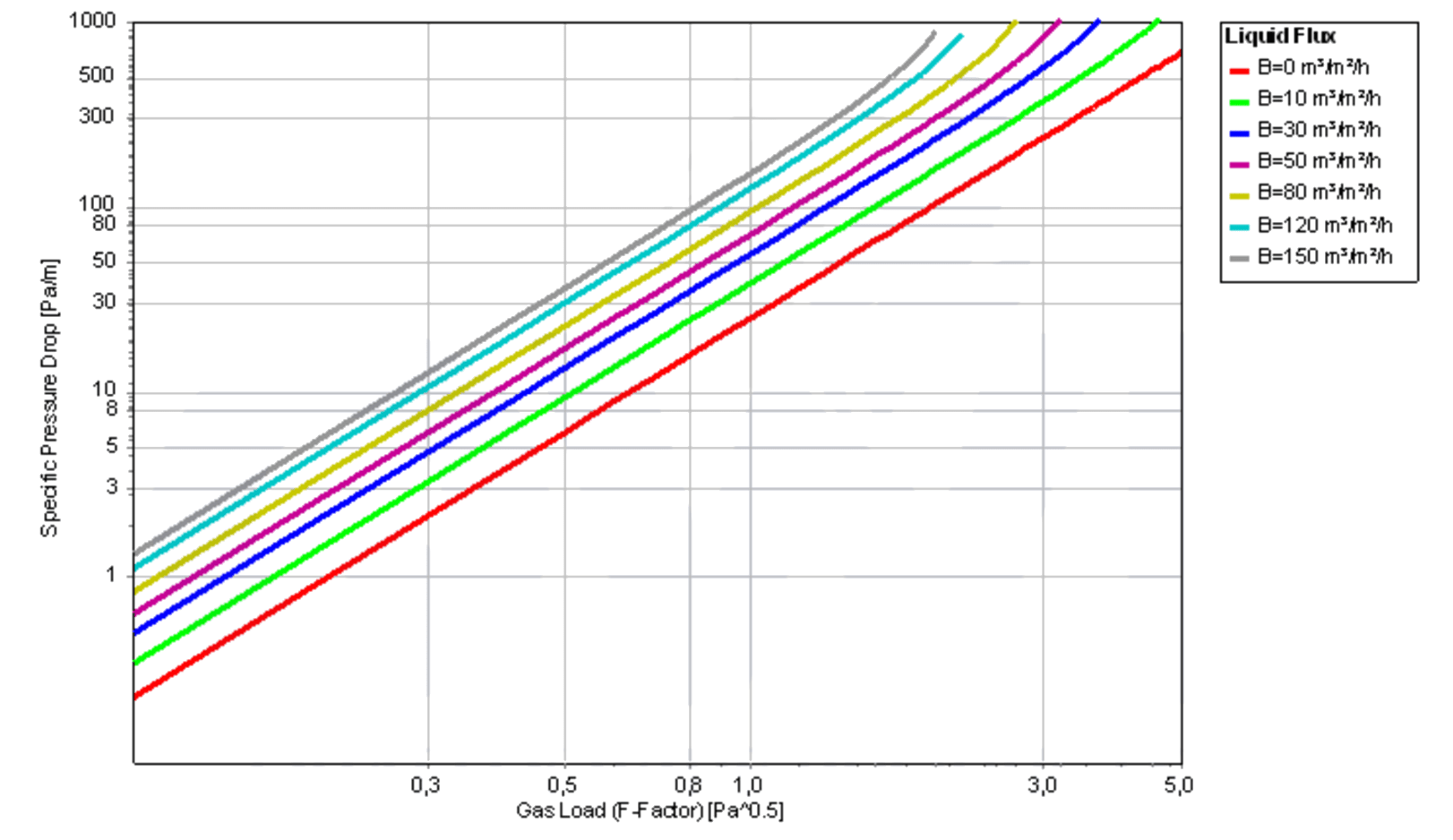

The graph below represents the air-water pressure drop performance for the PDS-IMTP-50 (D/d = 20):

PDS-IMTP-50 Metal Tower Packing

Key Specifications

Property Value
Nominal Size 50 mm
Type Metal Random Packing
Style IMTP Metal Tower Packing
Dimensions 56 mm x 43 mm x 30 mm
Material Thickness 0.25 mm
Density 164–168 kg/m³
Surface Area 100.0 m²/m³
Void Fraction 98.0%
No. of Pieces per m³ 15,000
Material Options (MOC)  SS304, SS316L, Hastelloy®, Titanium, Carbon Steel
Packaging 1 m³ Jumbo Bag

Applications

  • Petrochemical distillation

  • Heat-sensitive separations

  • Refining columns

  • Biofuel production
