Overview

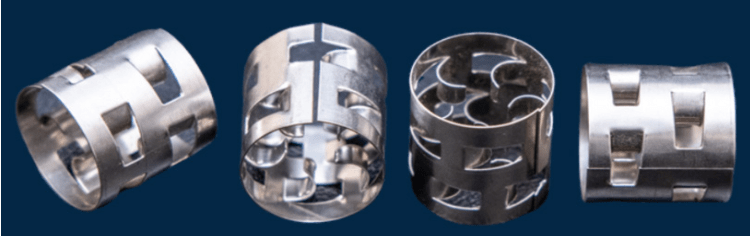

The PDS-MPALL-25 metal pall ring offers enhanced capacity and durability in mass transfer operations. With a surface area of 206.7 m²/m³ and 94.8% void fraction, it’s ideal for efficient column performance.

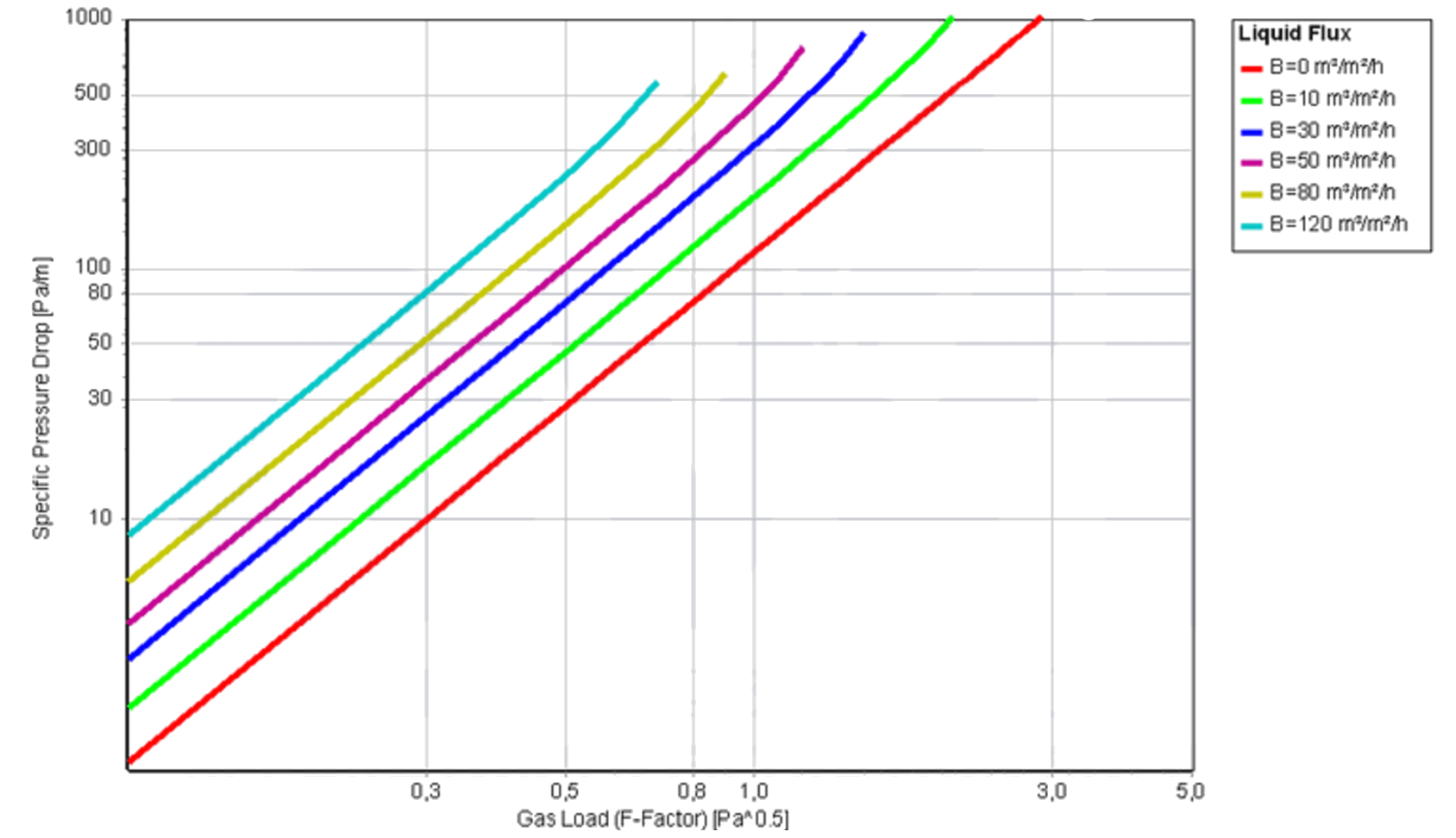

Pressure Drop Performance
Air-water pressure drop data provided below (D/d = 20):
Key Specifications
| Property | Value |
|---|---|
| Nominal Size | 25 mm |
| Type | Metal Random Packing |
| Style | Metal Pall-Ring Tower Packing |
| Dimensions | 25 mm x 25 mm x 25 mm |
| Material Thickness | 0.40 mm |
| Density | 322–328 kg/m³ |
| Surface Area | 206.7 m²/m³ |
| Void Fraction | 94.8% |
| No. of Pieces per m³ | 51,000 |
| Material Options (MOC) | SS304, SS316L, Hastelloy®, Titanium, Carbon Steel |
| Packaging | 1 m³ Jumbo Bag |
Applications
-
Distillation systems
-
Absorption towers
-
Stripping operations
-
Vacuum distillation
-
Quench towers
-
Gas purification
-
Wastewater treatment
-
High-temperature or corrosive environments
